6-1123722-3
ActiveTE Connectivity AMP Connectors
3.96 EP PLUG HSG 3P(GREEN)
6-1123722-3
ActiveTE Connectivity AMP Connectors
3.96 EP PLUG HSG 3P(GREEN)
Description
General part information
6-1123722-3

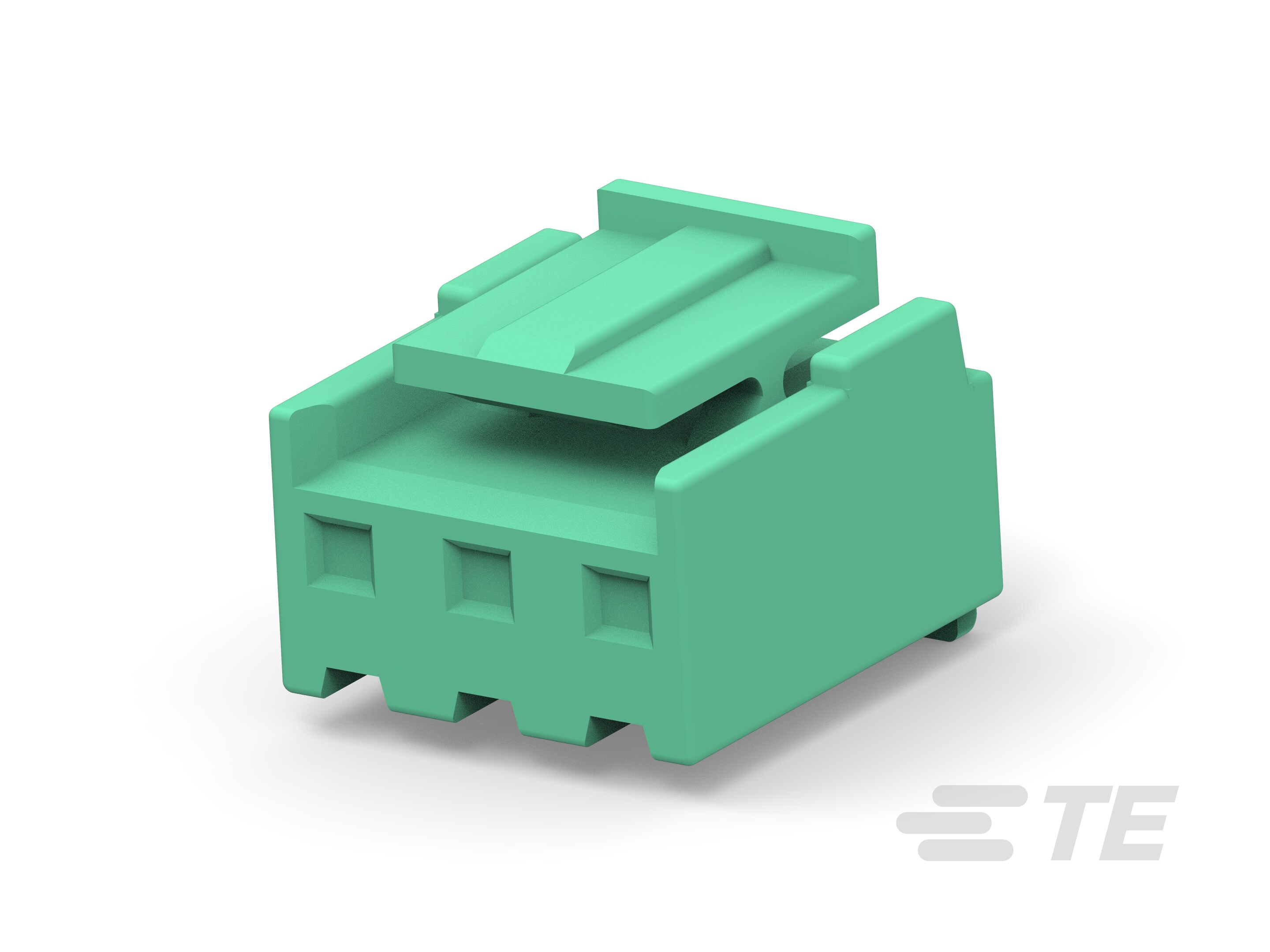

Housing, Plug, Wire-to-Board, 3 Position, 3.96 mm [.156 in] Centerline, Crimp, 1 Row, Green, Wire & Cable, Power & Signal, Economy Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-1123722-3 |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.156 in |
