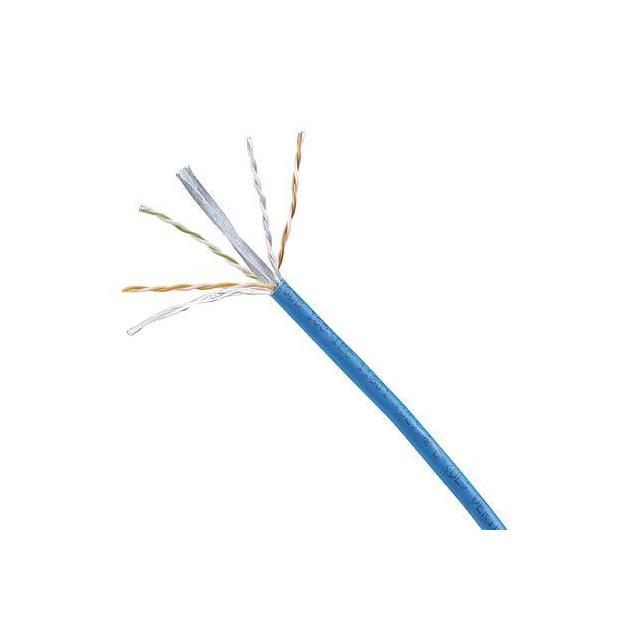

Specification	PUR6004WH-FE

Cable Type	Cat6, Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	High Density Polyethylene (HDPE)
Conductor Material	Copper
Conductor Strand	Solid
Jacket (Insulation) Diameter	0.225 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	White
Length	1000 ft
Number of Conductors	8
Number of Conductors - Pair	4
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Voltage	80 V
Wire Gauge	23 AWG
