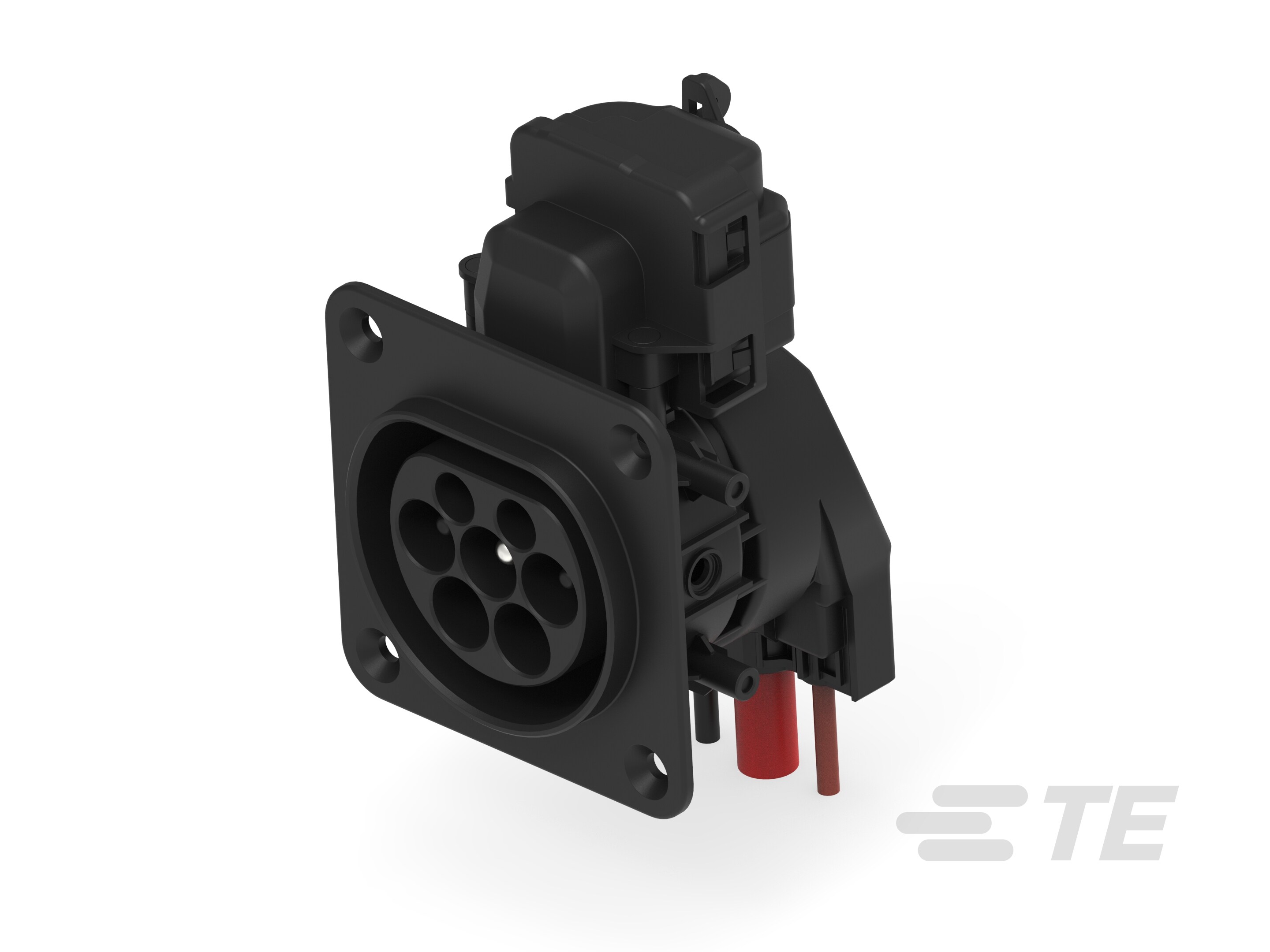

HV,CHARGE INLET TYPE2,HYB ASSY-2-2208884-5

2-2208884-5

Active
TE Connectivity AMP Connectors

EV CABLE, IEC 62196-2 INLET-FREE END, 5M ROHS COMPLIANT: YES

Find alt
HV,CHARGE INLET TYPE2,HYB ASSY-2-2208884-5

2-2208884-5

Active
TE Connectivity AMP Connectors

EV CABLE, IEC 62196-2 INLET-FREE END, 5M ROHS COMPLIANT: YES

Find alt

Description

General part information

Charging Inlets Series

440 VDC, 5 m [16.4 ft], -40 – 50 °C [-40 – 122 °F]

Technical Specifications

Parameters and characteristics for this part

Specification2-2208884-5
2nd ConnectorCable
Conductor TypesPower, Signal
Current Rating32 A
Number of Conductors - Power5
Number of Conductors - Signal2
Operating Temperature (Max)50 °C
Operating Temperature (Min)-40 °C
ShieldingUnshielded
StyleLeads, Female Plug
