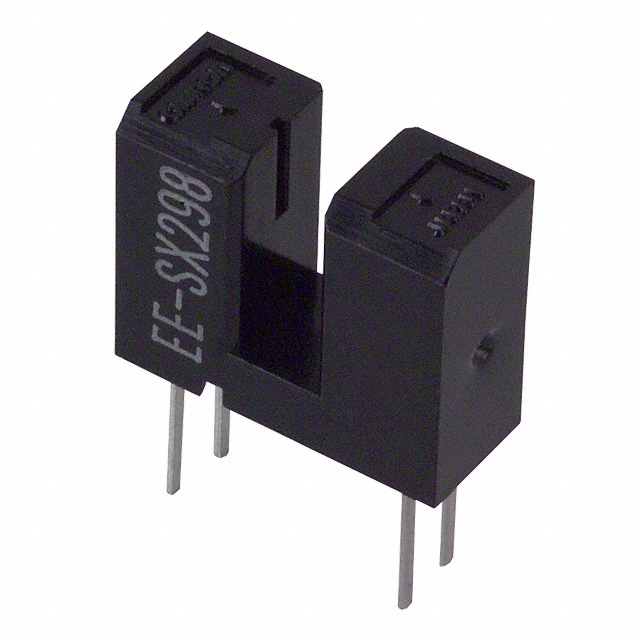

EE-SX298
ObsoleteOmron Electronics Inc-EMC Div
SENSOR OPT SLOT DARL PCB MOUNT
EE-SX298
ObsoleteOmron Electronics Inc-EMC Div
SENSOR OPT SLOT DARL PCB MOUNT
Description
General part information
EE-SX298
Optical Sensor Through-Beam 0.118" (3mm) Photodarlington PCB Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | EE-SX298 |
|---|---|
| Current - Collector (Ic) (Max) | 20 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Photodarlington |
| Package / Case | PCB Mount |
| Response Time | 70 µs |
| Sensing Distance | 0.118 " |
| Sensing Method | Through-Beam |
| Type | Unamplified |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
