BA017
ActivePasternack
ADAPTOR 75 OHM BNC M/F F
BA017
ActivePasternack
ADAPTOR 75 OHM BNC M/F F
Description
General part information
BA017

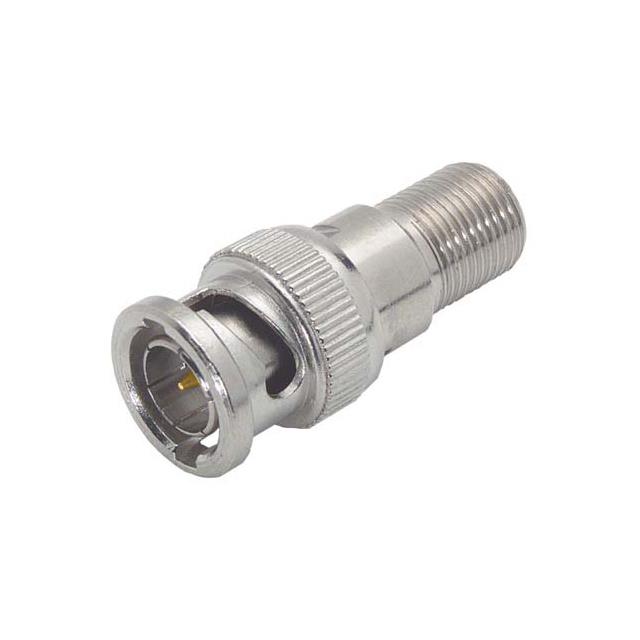

Adapter Coaxial Connector BNC Plug, Male Pin To F Jack, Female Socket 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA017 |
|---|---|
| Adapter Series | BNC to F |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, BNC Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | F Jack |
| Fastening Type | Threaded, Bayonet Lock |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
