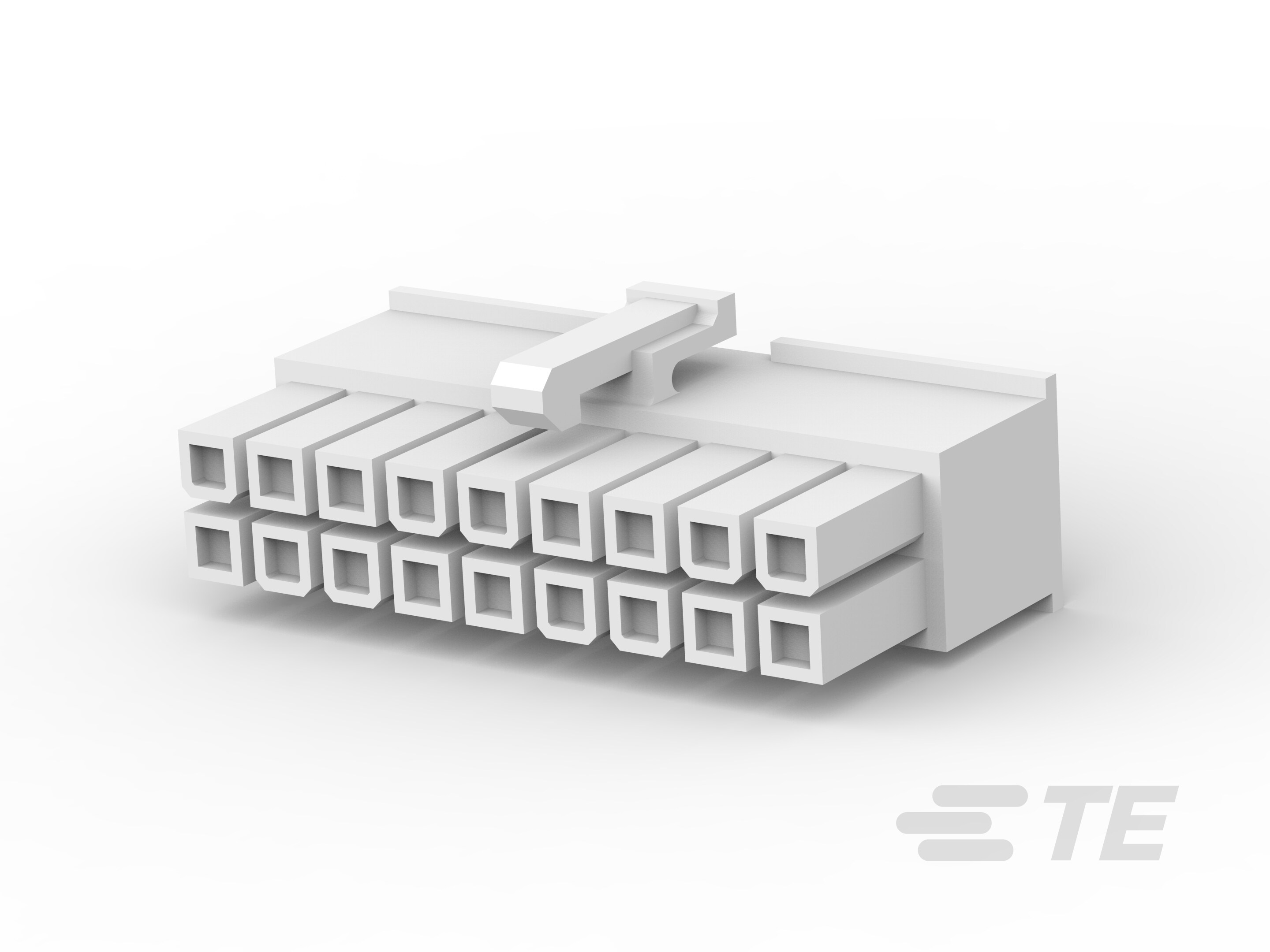

18P RCPT VAL-U-LOK V2-1-794954-8

1-794954-8

Active
TE Connectivity AMP Connectors

CONNECTOR HOUSING, VAL-U-LOK SERIES, RECEPTACLE, 18 POSITIONS, 4.2 MM

Find alt
18P RCPT VAL-U-LOK V2-1-794954-8

1-794954-8

Active
TE Connectivity AMP Connectors

CONNECTOR HOUSING, VAL-U-LOK SERIES, RECEPTACLE, 18 POSITIONS, 4.2 MM

Find alt

Description

General part information

1-794954-8

18 Position, Receptacle, Housing, Crimp, Wire-to-Board / Wire-to-Wire, UL 94V-2, 4.2 mm [.165 in] Centerline, 2 Row, 600 VAC, Wire & Cable

Technical Specifications

Parameters and characteristics for this part

Specification1-794954-8
ColorNatural
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
Insulation MaterialNylon, Polyamide (PA)
Mounting TypeFree Hanging (In-Line)
Number of Positions18
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.165 in
Row Spacing0.165 in
