51863-5
ActiveTE Connectivity AMP Connectors
TERMINAL,PIDG R I.R. 22 6 ROHS COMPLIANT: YES
51863-5
ActiveTE Connectivity AMP Connectors
TERMINAL,PIDG R I.R. 22 6 ROHS COMPLIANT: YES
Description
General part information
51863-5

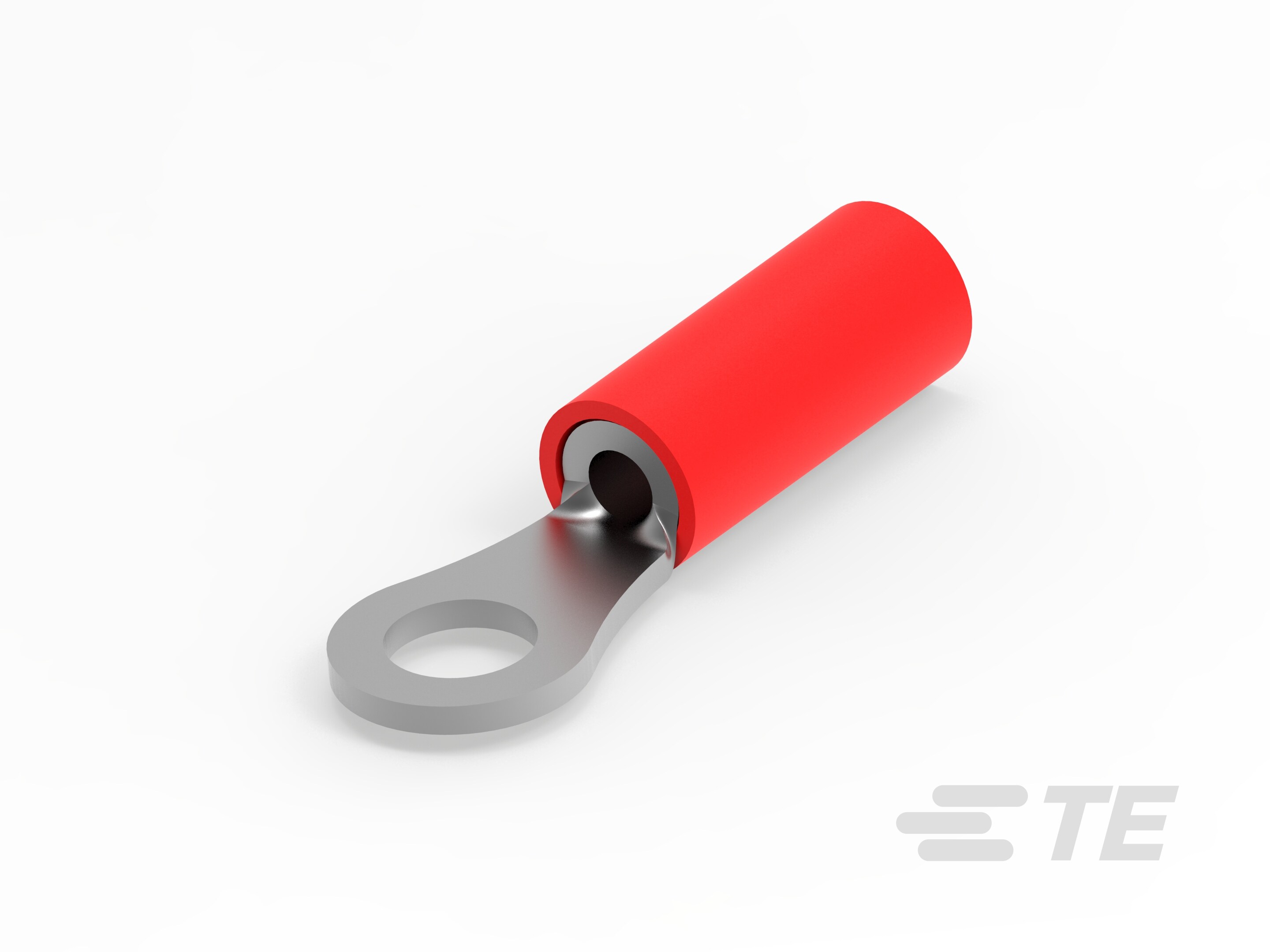

Closed Ring Tongue Terminal, 22 AWG, M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 51863-5 |
|---|---|
| Color | Green Stripe, Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Insulation Restriction |
| Insulation | Insulated |
| Length - Overall | 0.844 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.25 in |
| Wire Gauge | 22 AWG |
