UTSX01419SY
ActiveAmphenol Aerospace Operations

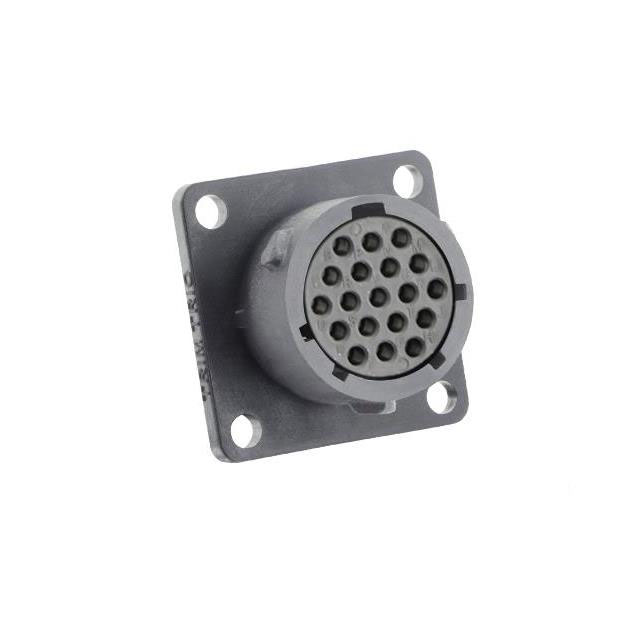

SQUARE FLANGE RECEPTACLE, WITHOU
UTSX01419SY
ActiveAmphenol Aerospace Operations
SQUARE FLANGE RECEPTACLE, WITHOU
Description
General part information
UTSX01419SY
19 Position Circular Connector Receptacle Housing Panel Mount UV Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | UTSX01419SY |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Y |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert (Maximum) | 19 |
| Shell Size - Insert (Minimum) | 14 S |
| Shielding | Unshielded |
| Type | For Female Sockets |
