M7PSK-2506J

Active

D-SUB CABLE MMM25K/MC26G/MFM25K

Search across all available documentation for this part.

Active

D-SUB CABLE MMM25K/MC26G/MFM25K

Technical Specifications

Parameters and characteristics commom to parts in this series

D-SUB CABLE MMM37K/MC37M/MFM37K

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	1st Connector	Shielding	Type	Length	Length	2nd Connector	Contact Finish
3M M7PSK-3706R	37	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	Unshielded	DB37	6 ft	1.83 m	Plug, Male Pins	Gold
3M M7PSK-3706J	37	0.76 Ám	30 Áin		Female Sockets, Receptacle	Unshielded	DB37	6 ft	1.83 m	Plug, Male Pins	Gold
3M M7PSK-1510R	15	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	Unshielded	DB15	10 ft	3.05 m	Plug, Male Pins	Gold
3M M7PSK-0906J	9	0.76 Ám	30 Áin		Female Sockets, Receptacle	Unshielded	DB9	6 ft	1.83 m	Plug, Male Pins	Gold
3M M7PSK-2510R		0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	Unshielded	DB25	10 ft	3.05 m	Plug, Male Pins	Gold
3M M7PSK-1506R	15	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	Unshielded	DB15	6 ft	1.83 m	Plug, Male Pins	Gold
3M M7PSK-0910R	9	0.76 Ám	30 Áin	Multiple, Ribbon	Female Sockets, Receptacle	Unshielded	DB9	10 ft	3.05 m	Plug, Male Pins	Gold
3M M7PSK-3710J	37	0.76 Ám	30 Áin		Female Sockets, Receptacle	Unshielded	DB37	10 ft	3.05 m	Plug, Male Pins	Gold
3M M7PSK-2510J		0.76 Ám	30 Áin		Female Sockets, Receptacle	Unshielded	DB25	10 ft	3.05 m	Plug, Male Pins	Gold
3M M7PSK-2506J		0.76 Ám	30 Áin		Female Sockets, Receptacle	Unshielded	DB25	6 ft	1.83 m	Plug, Male Pins	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

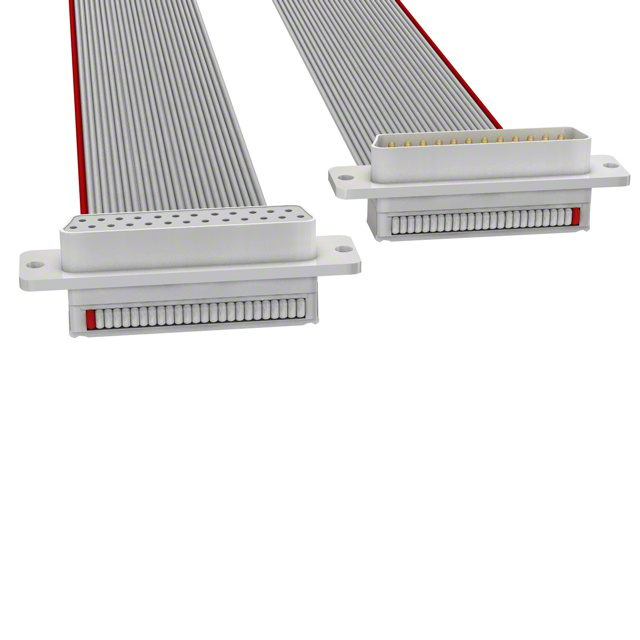

D-Sub Cable Assembly DB25 Gray, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Plug, Male Pins Unshielded

Technical documentation and resources
