VBDN12
ActiveSWITCH DISCONNECTOR, 3 POLE, 400 V, 8.1 A, IP65, SCREW CLAMP, DOOR MOUNT
VBDN12
ActiveSWITCH DISCONNECTOR, 3 POLE, 400 V, 8.1 A, IP65, SCREW CLAMP, DOOR MOUNT
Description
General part information
VBDN12

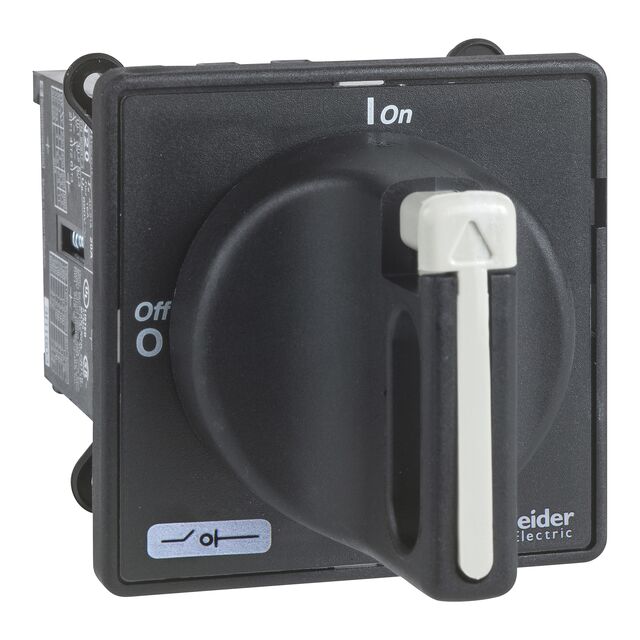

VBDN12 is a TeSys vario switch disconnector for door mounting. It has a 3 pole, 12A/690V, for motor switching applications upto 4kW at 400V AC-23. A complete unit composed of a switch body VN12, a black handle with a black 60x60mm front plate KAD1PZ. It is intended for main switch disconnecting usage. It has pad lockable handle. It is handled with central fixing on the door, ensuring IP65 to the mounting.
Technical Specifications
Parameters and characteristics for this part
| Specification | VBDN12 |
|---|---|
| Current | 12 A |
| Type | Switch |
| Voltage | 690 V |
