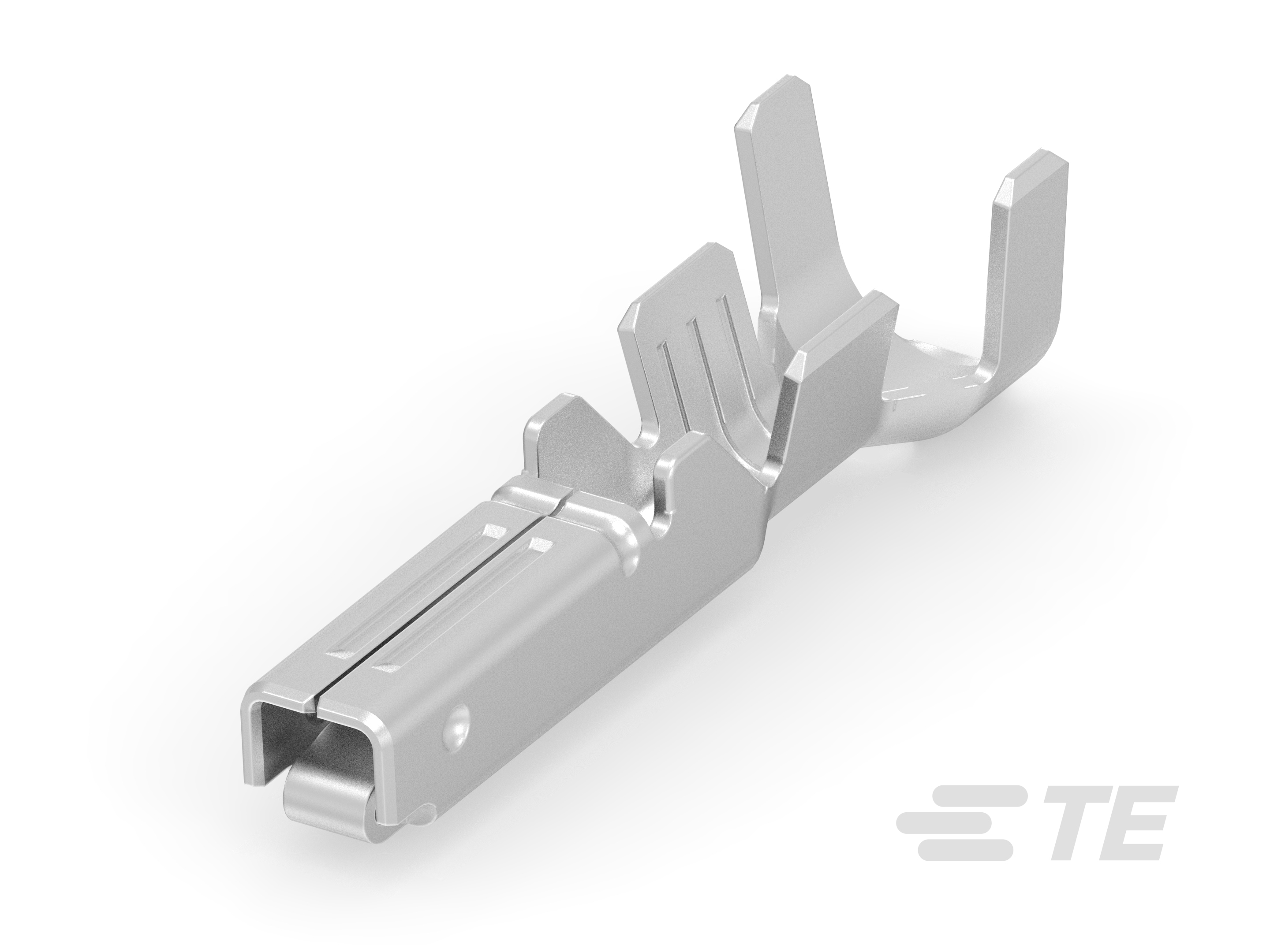

282110-1

Active

TE Connectivity AMP Connectors

CONTACT, SUPERSEAL 1.5 SERIES, SOCKET, 18 AWG, 15 AWG, CRIMP, PHOSPHOR BRONZE ROHS COMPLIANT: YES

Find alt

Alpha

282110-1

Active

TE Connectivity AMP Connectors

CONTACT, SUPERSEAL 1.5 SERIES, SOCKET, 18 AWG, 15 AWG, CRIMP, PHOSPHOR BRONZE ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AMP Superseal 1.5mm Series Series

Receptacle Terminal, 18 – 15 AWG, .75 – 1.5 mm² Wire, 1.5 mm [.059 in] Tab Width, Tin (Sn), Sealable, AMP Superseal 1.5mm Series

Technical Specifications

Parameters and characteristics for this part

Specification	282110-1

Contact Finish	Tin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge (AWG) (Max)	18 AWG
Wire Gauge (AWG) (Min)	15 AWG

AMP Superseal 1.5mm Series Series

Part	Fastening Type	Insulation Material	Mounting Type	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Contact Termination	Features	Contact Type	Color	Number of Rows	Number of Positions	Note	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Pin or Socket	Contact Finish Thickness	Type
TE Connectivity AMP Connectors 281934-3
TE Connectivity AMP Connectors 1745082-1	Locking Ramp	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.236 in	125 °C	-40 °C	Housing for Male Insert	Crimp	IP67	Male Pin	White	1	3
TE Connectivity AMP Connectors 282088-1	Latch Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.236 in	125 °C	-40 °C	Plug Receptacle	Crimp		Female Socket	Black	1	4	Contacts Not Included
TE Connectivity AMP Connectors 282107-1	Locking Ramp	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.236 in	125 °C	-40 °C	Receptacle	Crimp		Tab	Black	1	5
TE Connectivity AMP Connectors 1745083-1	Latch Holder	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.236 in	125 °C	-40 °C	Plug	Crimp	Terminal Position Lock (TPA)	Female Socket	White	1	3	Contacts Not Included
TE Connectivity AMP Connectors 183025-1								Crimp							Tin	18 AWG	15 AWG	Socket
TE Connectivity AMP Connectors 282087-1	Latch Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.236 in	125 °C	-40 °C	Plug	Crimp		Female Socket	Black	1	3
TE Connectivity AMP Connectors 282080-3	Latch Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	0.236 in	125 °C	-40 °C	Plug	Crimp		Female Socket	Green	1	2
TE Connectivity AMP Connectors 282404-3								Crimp							Gold	22 AWG	19.5 AWG	Tab	31.5 µin	Stamped
TE Connectivity AMP Connectors 282466-1								Crimp							Tin	15 AWG	13 AWG	Socket
