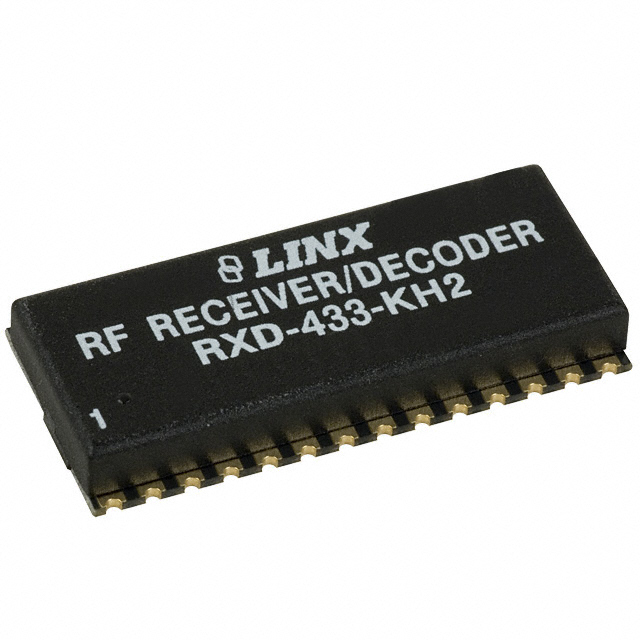

RXD-433-KH2
ObsoleteTE Connectivity AMP Connectors
RF RECEIVER ASK/OOK 433.92MHZ
RXD-433-KH2
ObsoleteTE Connectivity AMP Connectors
RF RECEIVER ASK/OOK 433.92MHZ
Description
General part information
RXD-433-KH2
KH2 RF Receiver ASK, OOK 433.92MHz -112dBm 10kbps PCB, Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RXD-433-KH2 |
|---|---|
| Antenna Connector | PCB, Surface Mount |
| Applications | Security Alarms, RKE, Garage Openers |
| Current - Receiving | 5.2 mA |
| Data Interface | PCB, Surface Mount |
| Data Rate (Max) | 10 kBaud |
| Features | Built-in Remote Control Decoder |
| Frequency | 433.92 MHz |
| Modulation or Protocol | ASK, OOK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 28-SMD, No Lead |
| Sensitivity | -112 dBm |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
