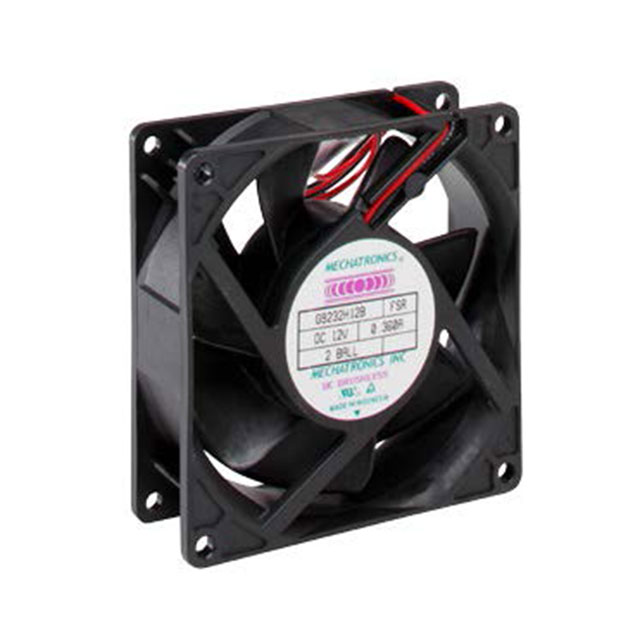

G9232X12B1-FSR - G9232

G9232X12B1-FSR

Active
Mechatronics Bearing Group

FAN AXIAL 92X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetAC/DC Fans & Blowers Catalog+2
G9232X12B1-FSR - G9232

G9232X12B1-FSR

Active
Mechatronics Bearing Group

FAN AXIAL 92X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheetAC/DC Fans & Blowers Catalog+2

Technical Specifications

Parameters and characteristics for this part

SpecificationG9232X12B1-FSR
Air Flow68 CFM
Air Flow1.9 m³/min
Approval AgencyCE, cUL, TUV, UL
Bearing TypeBall
Current Rating (Amps)0.68 A
Fan TypeTubeaxial
FeaturesSpeed Sensor (Tach), Thermal Overload Protector (TOP)
Material - BladePolybutylene Terephthalate (PBT)
Noise44 dB
RPM4000 RPM
Static Pressure0.33 in H2O
Static Pressure82.2 Pa
Termination3 Wire Leads
Voltage - Rated12 VDC
Weight0.335 lb
Weight151.95 g
Width [y]32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 100$ 12.93

Description

General part information

G9232X12B1-FSR

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 68.0 CFM (1.90m³/min) 3 Wire Leads
