Description
General part information
UR73VH2BTTDR301F

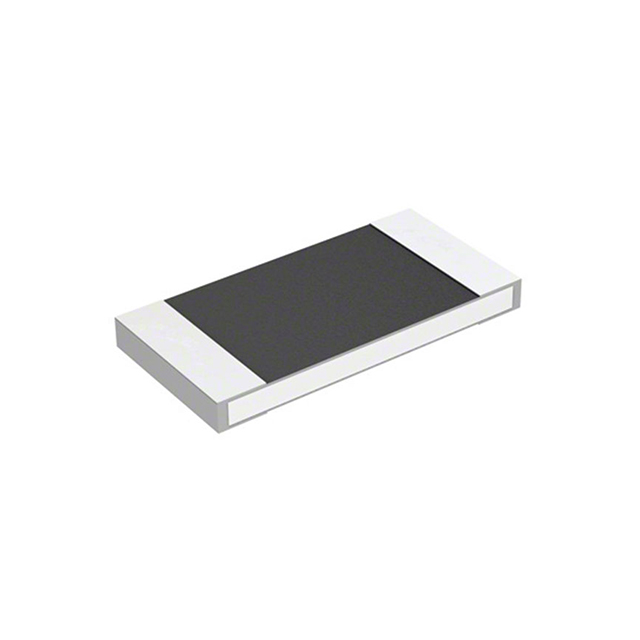

301 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | UR73VH2BTTDR301F |
|---|---|
| Composition | Thick Film |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 301 mOhms |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
