MAX11613EVSYS+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION SYSTEM FOR MAX11613
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11613EVSYS+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION SYSTEM FOR MAX11613
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11613EVSYS+ | MAX11613 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | MUX-S/H-ADC |
| Data Interface | Serial, I2C | Serial, I2C |
| Input Type | - | Single Ended, Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 10, 8, 12 | 8 - 12 |
| Number of Inputs | - | 2 - 4 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-MSOP, 8-TSSOP, 12-WFBGA, WLBGA |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External, Internal |
| Sampling Rate (Per Second) | 94.4 k per second | 94.4 k per second |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-uMAX/uSOP, 12-WLP |
| Supplier Device Package | - | 2.14 |
| Supplier Device Package | - | 1.56 |
| Utilized IC / Part | MAX11613 | MAX11613 |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 3.6 V |
| Voltage - Supply, Digital | - | 3.6 V |
| Voltage - Supply, Digital | - | 2.7 V |
MAX11613 Series
EVALUATION SYSTEM FOR MAX11613
| Part | Number of Bits | Utilized IC / Part | Supplied Contents | Number of A/D Converters | Sampling Rate (Per Second) | Data Interface | Reference Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Architecture | Package / Case | Package / Case [custom] | Package / Case | Ratio - S/H:ADC | Mounting Type | Number of Inputs | Input Type | Configuration | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11613EVSYS+ | 8, 10, 12 | MAX11613 | Board(s) | 1 | 94.4 k per second | I2C, Serial | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAX11613EUA+ | 12 bits | 1 | 94.4 k per second | I2C | External, Internal | 85 °C | -40 °C | 8-uMAX/uSOP | SAR | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 1:1 | Surface Mount | 2, 4 | Differential, Single Ended | MUX-S/H-ADC | 3.6 V | 2.7 V | 2.7 V | 3.6 V | ||||
Analog Devices Inc./Maxim Integrated MAX11613EWC+T | 12 bits | 1 | 94.4 k per second | I2C | External, Internal | 85 °C | -40 °C | 12-WLP | SAR | 12-WFBGA, WLBGA | 1:1 | Surface Mount | 2, 4 | Differential, Single Ended | MUX-S/H-ADC | 3.6 V | 2.7 V | 2.7 V | 3.6 V | 2.14 | 1.56 | ||||
Analog Devices Inc./Maxim Integrated MAX11613EUA+T | 12 bits | 1 | 94.4 k per second | I2C | External, Internal | 85 °C | -40 °C | 8-uMAX/uSOP | SAR | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 1:1 | Surface Mount | 2, 4 | Differential, Single Ended | MUX-S/H-ADC | 3.6 V | 2.7 V | 2.7 V | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MAX11613 Series

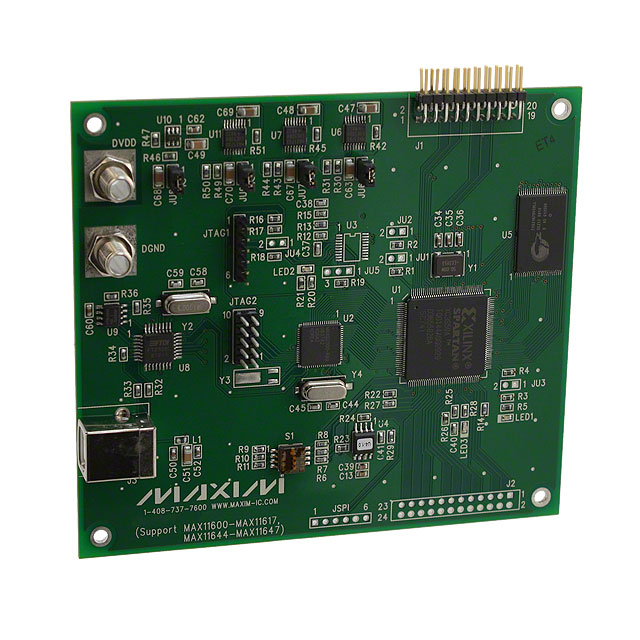

MAX11613 - 8, 10, 12 Bit 94.4k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
