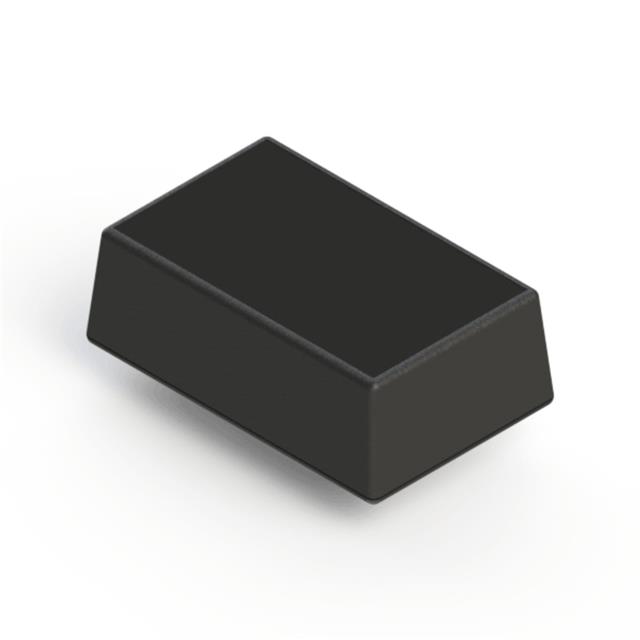

022I,BK

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	022I,BK	022I Series

Area (L x W)	10.7 in²	10.7 in²
Area (L x W)	69 cm²	69 cm²
Color	Black	Gray, Black, Almond
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports	PCB Supports
Height [z]	35.56 mm	35.56 mm
Height [z]	1.4 in	1.4 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	104.14 mm	104.14 mm
Size / Dimension [x]	4.1 "	4.1 "
Size / Dimension [y]	2.6 "	2.6 "
Size / Dimension [y]	66.04 mm	66.04 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	58.51 g	58.51 g
Weight	0.129 lb	0.129 lb

BOX ABS GRAY 4.1"L X 2.6"W

Part	Material Flammability Rating	Container Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thickness	Thickness	Design	Weight	Weight	Ratings	Area (L x W)	Area (L x W)	Color	Features	Material	Height [z]	Height [z]
Serpac 022I,GY	UL94 HB	Box	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included, Hand Held	58.51 g	0.129 lb	IP40, NEMA 1	10.7 in²	69 cm²	Gray	PCB Supports	Plastic, ABS	35.56 mm	1.4 in
Serpac 022I,BK	UL94 HB	Box	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included, Hand Held	58.51 g	0.129 lb	IP40, NEMA 1	10.7 in²	69 cm²	Black	PCB Supports	Plastic, ABS	35.56 mm	1.4 in
Serpac 022I,AL	UL94 HB	Box	2.6 "	66.04 mm	104.14 mm	4.1 "	2.54 mm	0.1 in	Cover Included, Hand Held	58.51 g	0.129 lb	IP40, NEMA 1	10.7 in²	69 cm²	Almond	PCB Supports	Plastic, ABS	35.56 mm	1.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.32

General part information

Box Plastic, ABS Black Hand Held, Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.400" (35.56mm)

Technical documentation and resources

No documents available
