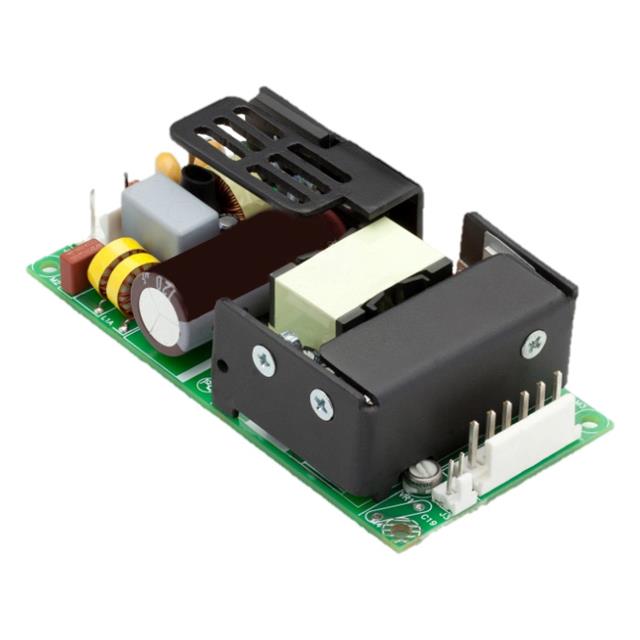

LFWLT60-3003

Active

Bel Power Solutions

AC/DC CNVRT 3.3V 5.2V -12.8V 42W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CNVRT 3.3V 5.2V -12.8V 42W

Technical Specifications

Parameters and characteristics for this part

Specification	LFWLT60-3003

Applications	ITE (Commercial)
Approval Agency	cUL, NEMKO, UL, CE
Current - Output 1	6 A
Current - Output 2	3 A
Current - Output 3	500 mA
Efficiency	85 %
Features	Adjustable Output, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	42 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	30.5 mm
Size / Dimension [z]	1.2 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	3.3 V
Voltage - Output 2	5.2 V
Voltage - Output 3	-12.8 V

AC/DC CNVRT 3.3V 5.2V -12.8V 42W

Part	Applications	Type	Approval Agency	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Current - Output 3	Voltage - Output 1	Efficiency	Current - Output 1	Number of Outputs	Minimum Load Required	Features	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Current - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 3
Bel Power Solutions LFWLT60-3003	ITE (Commercial)	Open Frame	CE, cUL, NEMKO, UL	5.2 V	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	42 W	500 mA	3.3 V	85 %	6 A	3		Adjustable Output, Universal Input	4.242 kV	90 VAC	264 VAC	Chassis Mount	3 A	-20 °C	70 °C	-12.8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	96	$ 44.14

General part information

Open Frame AC DC Converters 3 Output 3.3V 5.2V -12.8V 90 ~ 264 VAC Input
