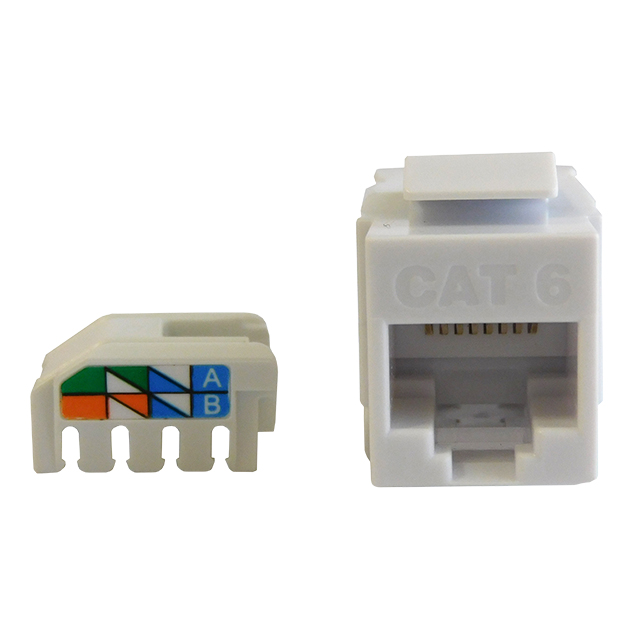

SS-82010-002

Active

Bel

MOD JACK KEYSTONE CAT6 UNSHLD

Search across all available documentation for this part.

Active

Bel

MOD JACK KEYSTONE CAT6 UNSHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block

Technical documentation and resources

No documents available

Specification	SS-82010-002	SS-82010 Series

Exterior Contact Finish	Gold	Gold
Exterior Contact Finish Thickness	1.27 Ám	1.27 Ám
Exterior Contact Finish Thickness	50 Áin	50 Áin
Exterior Contact Material	Phosphor Bronze	Phosphor Bronze
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)	Modular Jack 8p8c (RJ45, Ethernet)
Features	Latch Lock	Latch Lock, Panel Lock, Panel Stops
Interior Contact Finish	Tin	Tin
Interior Contact Finish Thickness	2.54 µm	2.54 µm
Interior Contact Finish Thickness	100 µin	100 µin
Interior Contact Material	Phosphor Bronze	Phosphor Bronze
Interior Type (Adapter End)	Pressdown, IDC, Punchdown Block	Pressdown, IDC, Punchdown Block, Modular Jack 8p8c (RJ45, Ethernet)
Ratings	Cat6	Cat6
Style	Modular	Modular

Part	Exterior Contact Finish	Style	Interior Type (Adapter End)	Exterior Contact Material	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Ratings	Features	Interior Contact Finish	Exterior Type (Adapter End)	Interior Contact Finish Thickness	Interior Contact Finish Thickness	Interior Contact Material
Bel SS-82010-002	Gold	Modular	IDC, Pressdown, Punchdown Block	Phosphor Bronze	1.27 Ám	50 Áin	Cat6	Latch Lock	Tin	Modular Jack 8p8c (RJ45, Ethernet)	2.54 µm	100 µin	Phosphor Bronze
Bel SS-82010-001	Gold	Modular	Modular Jack 8p8c (RJ45, Ethernet)	Phosphor Bronze	1.27 Ám	50 Áin	Cat6	Panel Lock, Panel Stops		Modular Jack 8p8c (RJ45, Ethernet)			Phosphor Bronze
