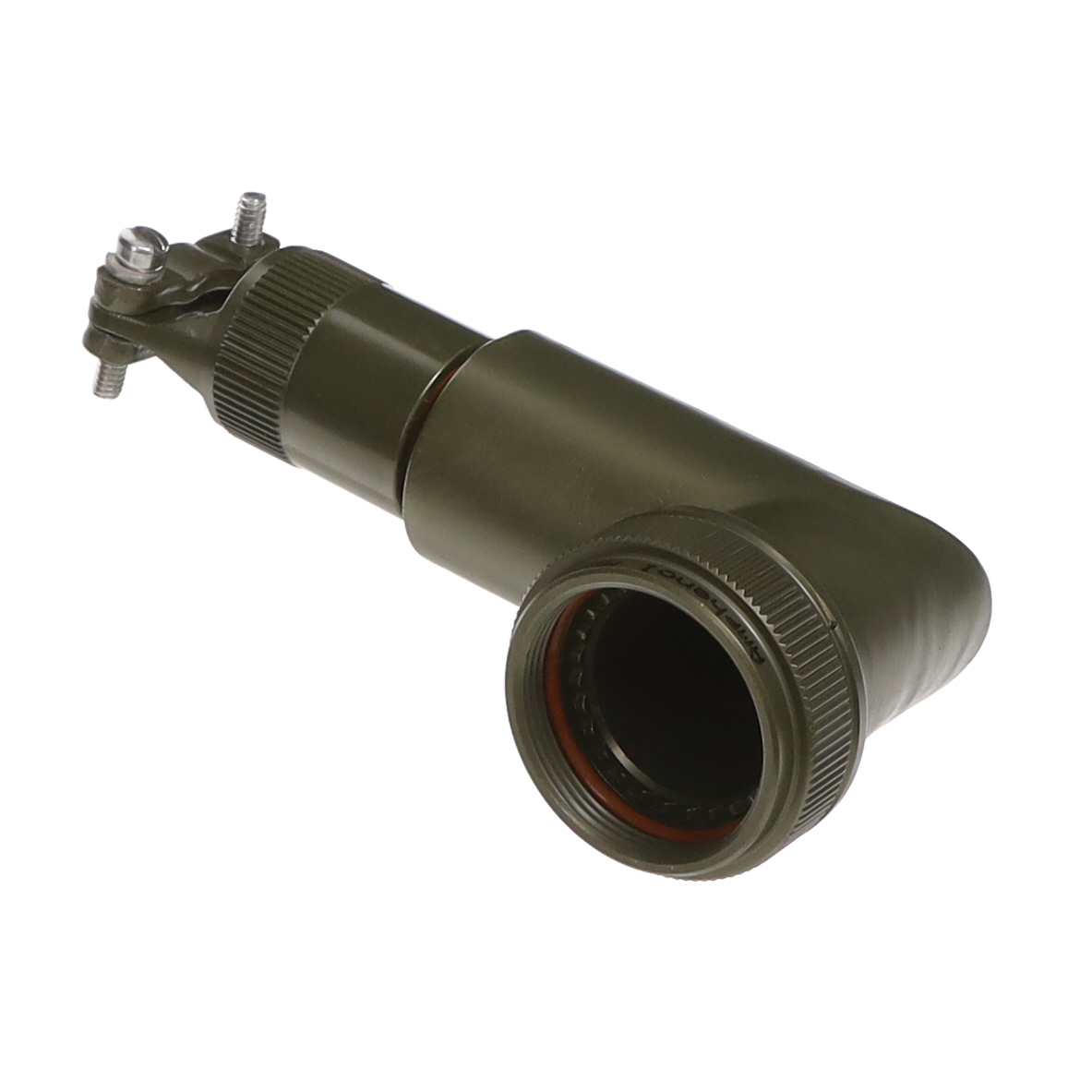

A850497917W02
ActiveMcGill Microwave Systems
BACKSHELL;ENV-EMI/RFI;CAD
A850497917W02
ActiveMcGill Microwave Systems
BACKSHELL;ENV-EMI/RFI;CAD
Description
General part information
A850497917W02
BACKSHELL;ENV-EMI/RFI;CAD
Technical Specifications
Parameters and characteristics for this part
| Specification | A850497917W02 |
|---|---|
| Cable Exit Angle | 90 ° |
| Cable Opening (Max) | 0.25 in |
| Cable Opening (Min) | 0.13 in |
| Color | Olive Drab |
| Diameter - Outside | 1.25 in |
| Features | Clamp Screws |
| Ingress Protection | Environment Resistant |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Primary Material | Metal |
| Shell Size - Insert | 17, E |
| Shielding | Shielded |
| Type | Cable Clamp, Backshell |
