1-215882-0
ActiveTE Connectivity AMP Connectors

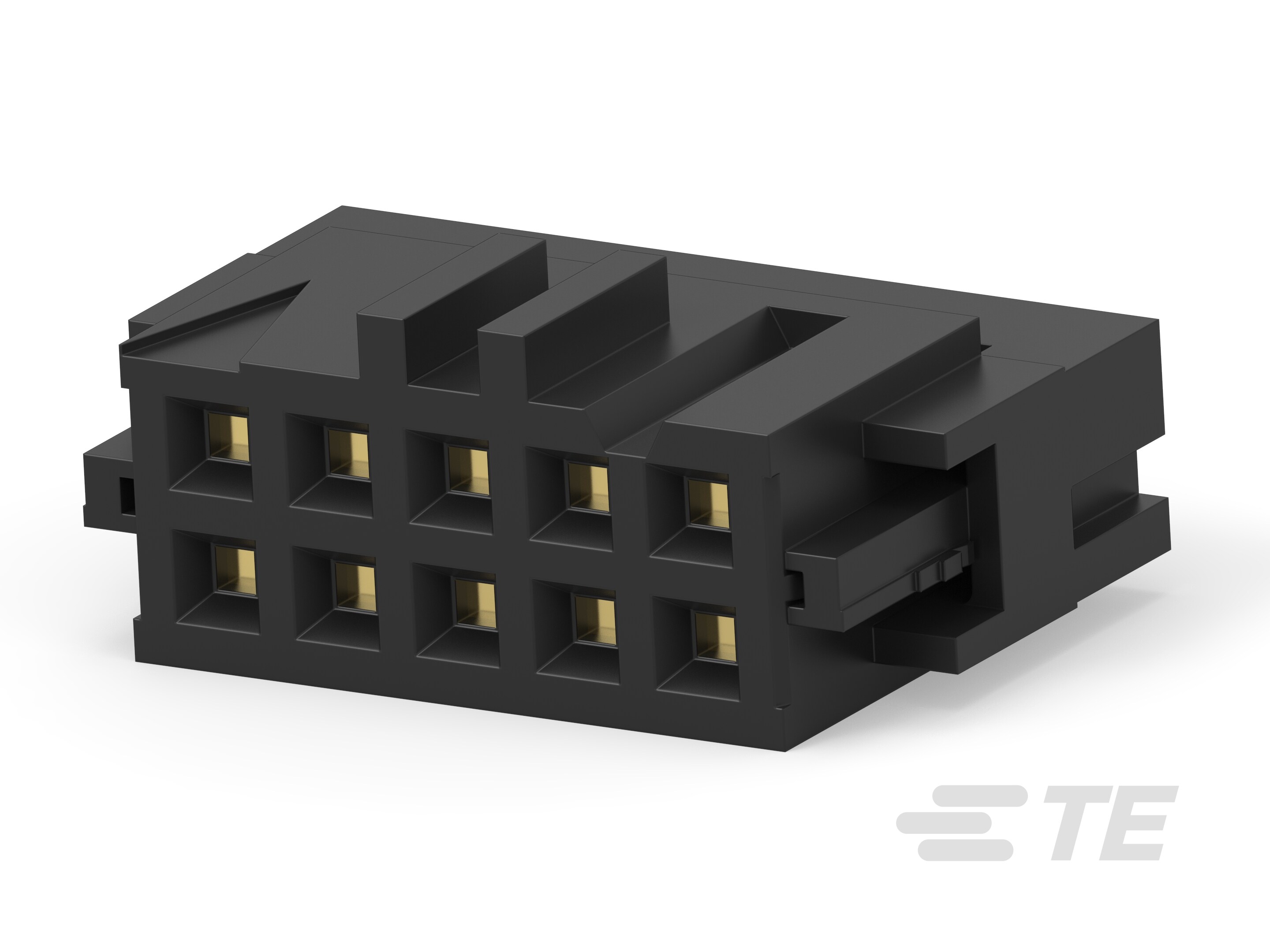

10 WAY BLACK MK II RECP
1-215882-0
ActiveTE Connectivity AMP Connectors
10 WAY BLACK MK II RECP
Description
General part information
AMP-LATCH - NOVO Series
Wire-to-Board, 10 Position, 2.54 mm [.1 in] Centerline, 2 Row, Receptacle, Wire & Cable, Signal, AMP-LATCH - NOVO, Ribbon Cable Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-215882-0 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold-Palladium, Gold |
| Contact Finish Thickness | 31.5 µin |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Features | Feed Through, Polarizing Key |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
| Wire Gauge | Solid, 28 AWG, Stranded, 26-30 AWG |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
