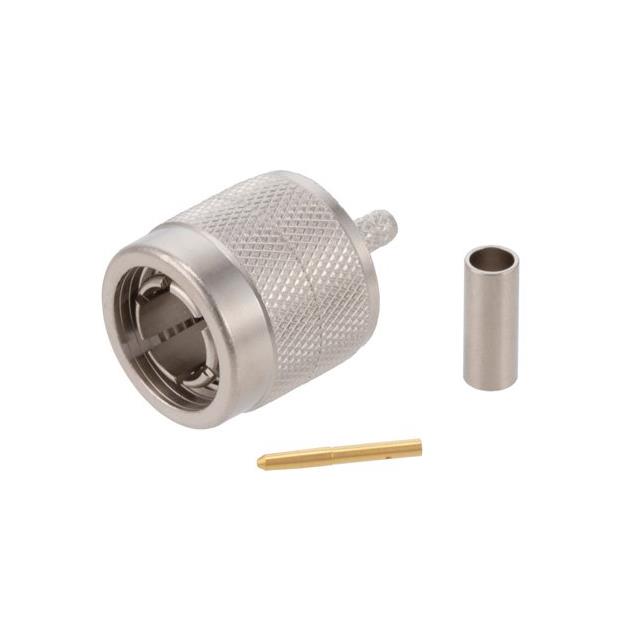

PE45687
ActivePasternack
75 OHM TNC MALE CONNECTOR CRIMP/
PE45687
ActivePasternack
75 OHM TNC MALE CONNECTOR CRIMP/
Description
General part information
PE45687
TNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45687 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 187, 316, RG-179 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 2 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 1000 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
