Specification	1SNG625044R0000

Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nickel Plated, Nylon 6, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	1.102 in
Outside Cable Diameter (Min)	0.748 in
Panel Hole Size	1.909 in
Thread Diameter	40 mm
Thread Length	0.591 in
Thread Pitch	1.5 mm

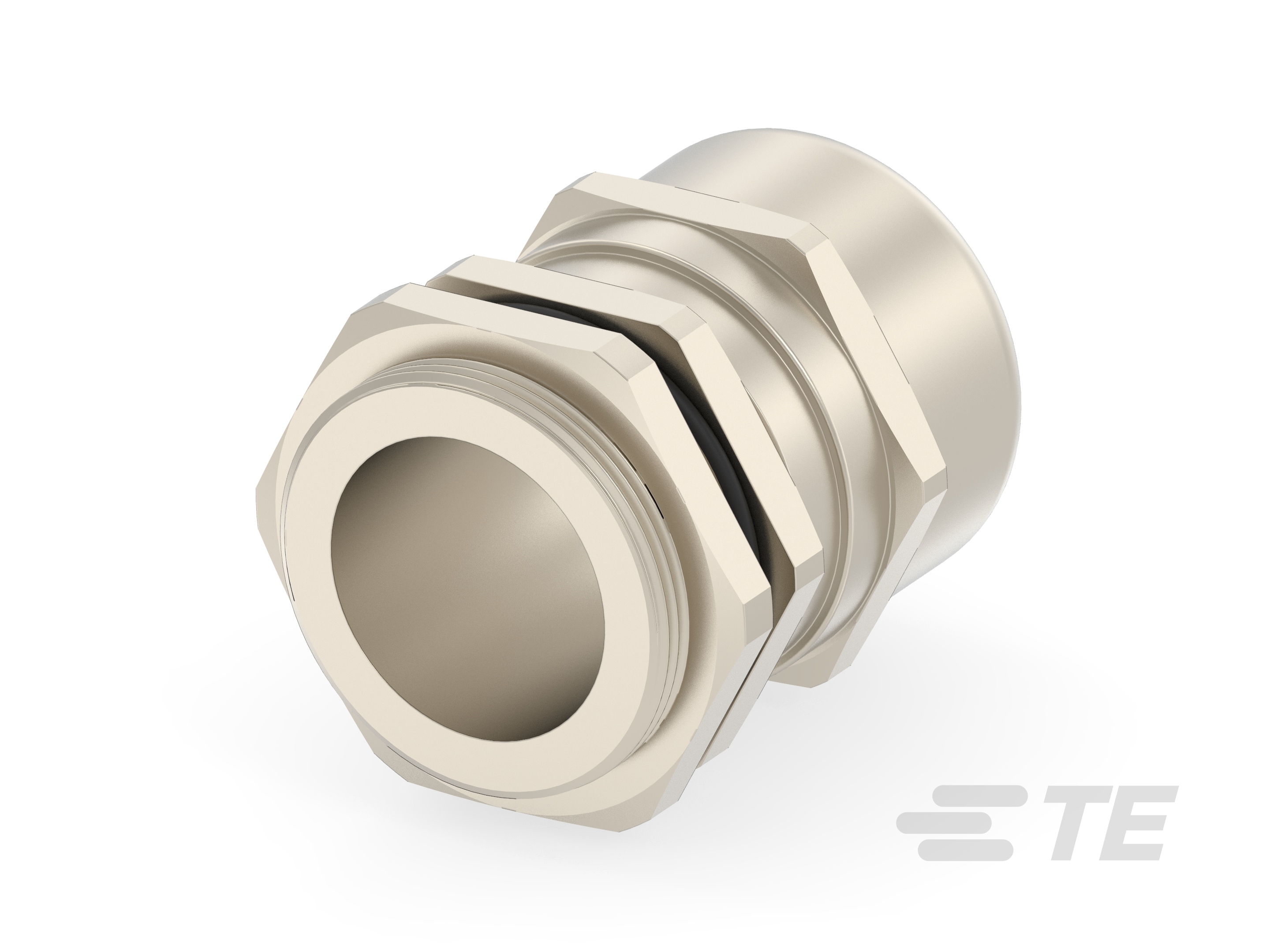

Type	Cable Gland
