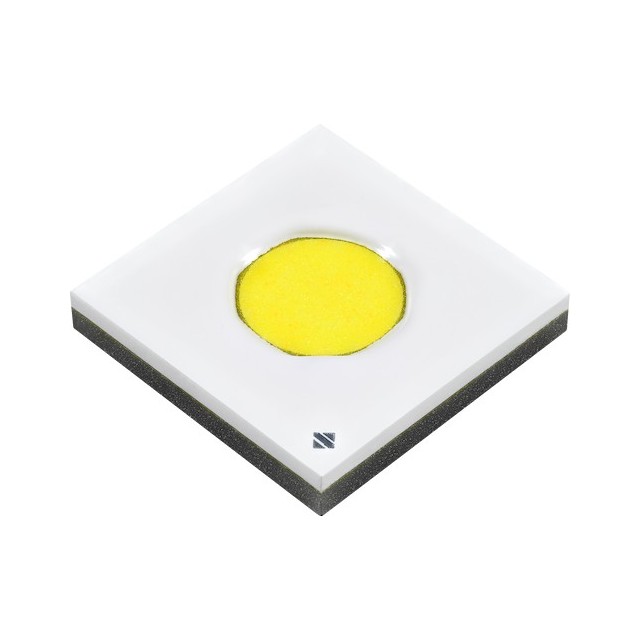

XMMRWA-H0-0000-000BK20E2
ActiveCreeLED, Inc.
XLAMP XM-MR LIGHT EMITTING DIODE
XMMRWA-H0-0000-000BK20E2
ActiveCreeLED, Inc.
XLAMP XM-MR LIGHT EMITTING DIODE
Description
General part information
XMMRWA-H0-0000-000BK20E2
XLAMP XM-MR LIGHT EMITTING DIODE
Technical Specifications
Parameters and characteristics for this part
| Specification | XMMRWA-H0-0000-000BK20E2 |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 14 A |
| Current - Test | 3 A |
| Flux (Maximum) | 1290 lm |
| Flux (Minimum) | 1200 lm |
| Flux (Typical) | 1245 lm |
| Height - Seated (Max) | 0.044 in |
| Lumens/Watt | 141 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2020 (5050 Metric) |
| Package Name | 2020 |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.197 in |
| Supplier Device Package | 2020 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V |
