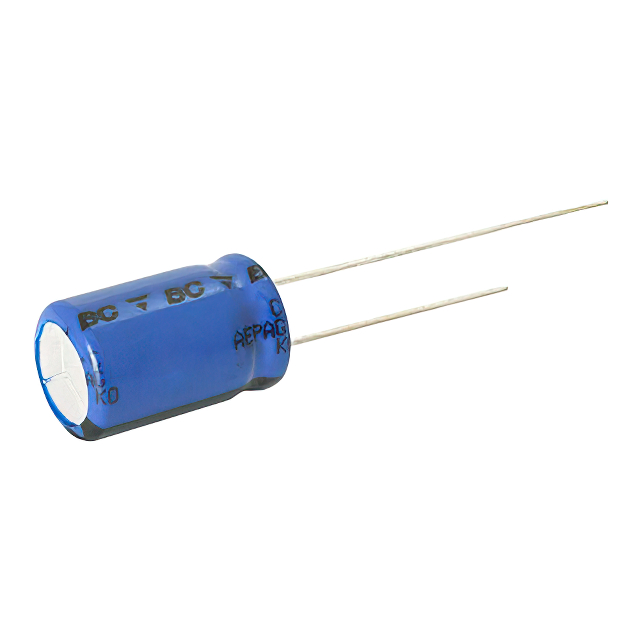

MAL217256152E3
ActiveVishay Dale
CAP, 1500UF, 25V, ALU ELEC, RADIAL ROHS COMPLIANT: YES
MAL217256152E3
ActiveVishay Dale
CAP, 1500UF, 25V, ALU ELEC, RADIAL ROHS COMPLIANT: YES
Description
General part information
MAL217256152E3
1500 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL217256152E3 |
|---|---|
| Applications | Automotive |
| Capacitance | 1500 µF |
| Height - Seated (Max) | 0.866 in |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 7000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 1.69 A, 2.6 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
