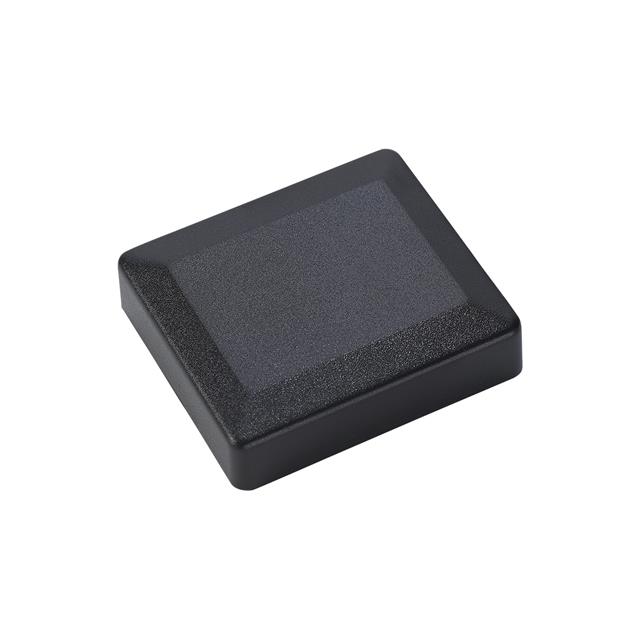

AGPS26MMMSMA
ActiveMcGill Microwave Systems
RF ANT 1.575GHZ MODULE SMA MAGN
AGPS26MMMSMA
ActiveMcGill Microwave Systems
RF ANT 1.575GHZ MODULE SMA MAGN
Description
General part information
AGPS26MMMSMA
RF ANTENNA GNSS, GPS Module SMA Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | AGPS26MMMSMA |
|---|---|
| Antenna Type | Module |
| Applications | GNSS, GPS |
| Features | Filter, 5.1816m, LNA, Cable |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.576 GHz |
| Frequency Range (Min) | 1.574 GHz |
| Gain | 5 dBic |
| Height (Max) | 0.547 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | SMA |
| VSWR | 2 |
