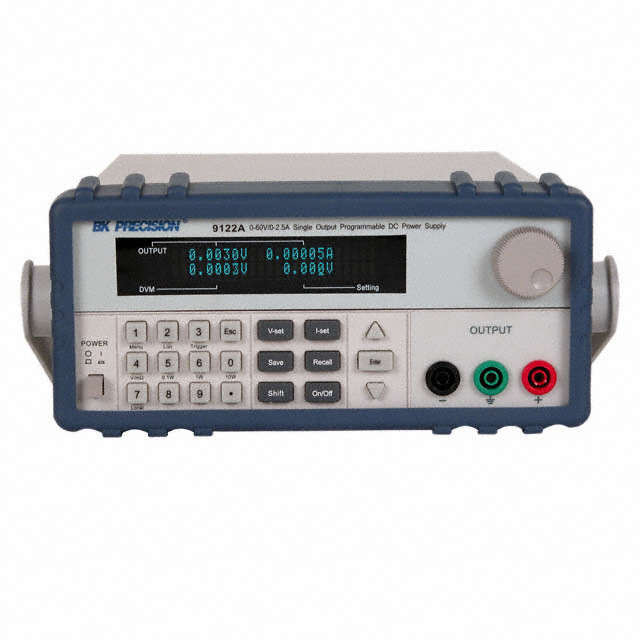

9122A
ObsoleteB&K PRECISION
POWER SPLY 0-60V 0-2.5A PROGRAM
9122A
ObsoleteB&K PRECISION
POWER SPLY 0-60V 0-2.5A PROGRAM
Description
General part information
9122A
0 ~ 60VDC Output Bench (AC to DC) Power Supply VFD 0 ~ 2.5A Output 150W Features Programmable, RS232 Port
Technical Specifications
Parameters and characteristics for this part
| Specification | 9122A |
|---|---|
| Accuracy - Ammeter (Absolute) | 1.5 mA |
| Accuracy - Ammeter (Percent) | 0.05 % |
| Accuracy - Voltmeter (Absolute) | 6 mV |
| Accuracy - Voltmeter (Percent) | 0.02 % |
| Current - Output (Max) | 2.5 A |
| Current - Output (Min) | 0 A |
| Current Regulation - Line (Absolute) | 0.05 mA |
| Current Regulation - Line (Percentage) | 0.05 % |
| Current Regulation - Load (Absolute) | 0.5 mA |
| Current Regulation - Load (Percentage) | 0.05 % |
| Display Type | VFD |
| Features | Programmable, RS232 Port |
| Number of Outputs | 1 |
| Power (Watts) | 150 W |
| Ripple Voltage (Peak-to-Peak) | 5 mV |
| Size / Dimension Height | 3.47 in |
| Size / Dimension Length | 13.9 in |
| Size / Dimension Width | 8.45 in |
| Type | Bench (AC to DC) |
| Voltage - Output (Max) | 60 V |
| Voltage - Output (Min) | 0 V |
| Voltage - Supply | 220 VAC, 110 VAC |
| Voltage - Supply | 220VAC, 110VAC |
| Voltage Regulation - Line (Absolute) | 2 mV |
| Voltage Regulation - Line (Percentage) | 0.01 % |
| Voltage Regulation - Load (Percentage) | 0.01 % |
| Voltage Regulation - Load (Voltage Offset) | 2 mV |
| Weight | 22 lbs |
