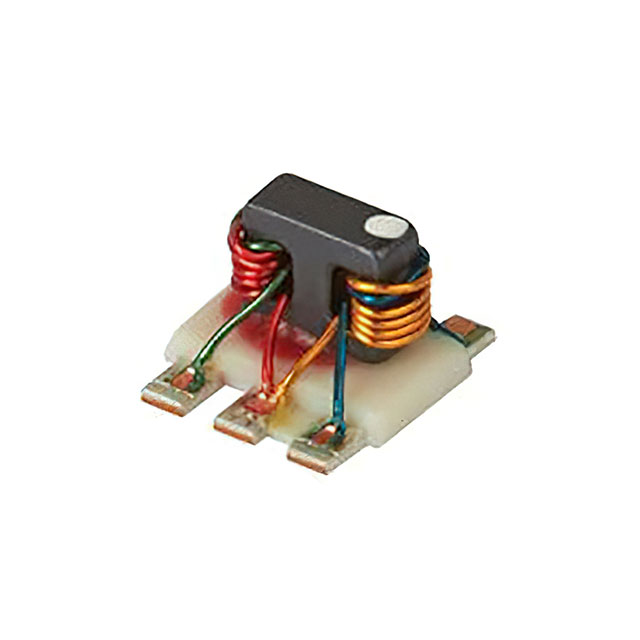

TCD-13-4+
ActiveMini-Circuits
RF DIR COUPLER 5MHZ-1GHZ 6SMD
TCD-13-4+
ActiveMini-Circuits
RF DIR COUPLER 5MHZ-1GHZ 6SMD
Description
General part information
TCD-13-4+
RF Directional Coupler CATV, Cellular 5MHz ~ 1GHz 13 ± 0.5dB 1W 6-SMD, Flat Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | TCD-13-4+ |
|---|---|
| Applications | Cellular, CATV |
| Coupler Type | Standard |
| Coupling Factor | 13 dB |
| Coupling Factor Tolerance | 0.5 dB |
| Frequency (Max) | 1 GHz |
| Frequency (Min) | 5 MHz |
| Package / Case | Flat Leads, 6-SMD |
| Power - Max | 1 VA |
| Return Loss | 29.67 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
