93-570123-08P
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB CONN RCPT
93-570123-08P
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB CONN RCPT
Description
General part information
93-570123-08P

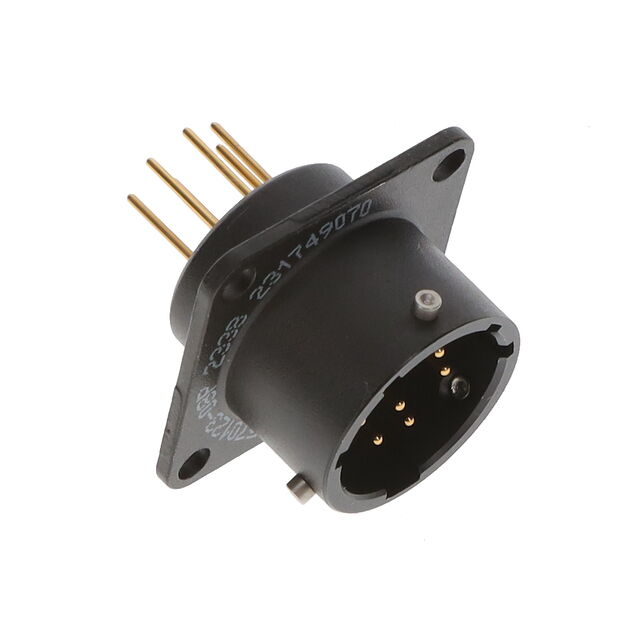

8 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 93-570123-08P |
|---|---|
| Applications | Industrial, Instrumentation, Military, Mass Transit, Aerospace |
| Cable Opening | 0.699 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | W |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Black Zinc Cobalt |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 12 mm |
| Shell Size - Insert Width | 8 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 600 V |
