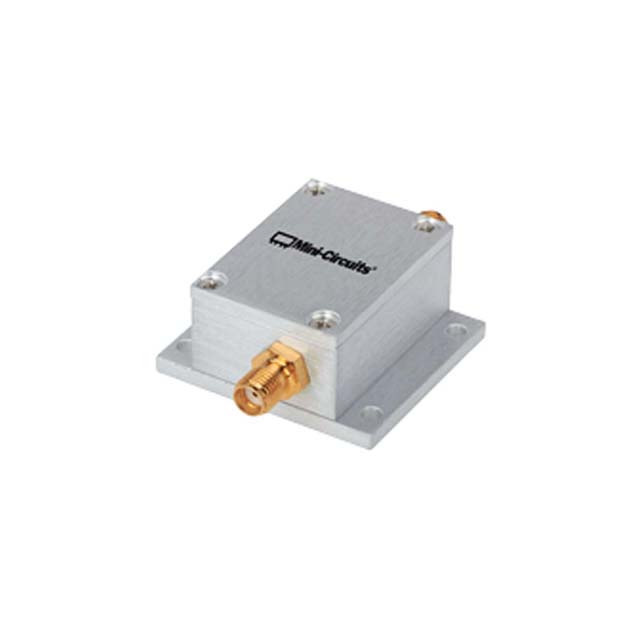

ZKL-1R5+
ActiveMini-Circuits
IC AMP CELLULAR 10MHZ-1.5GHZ
ZKL-1R5+
ActiveMini-Circuits
IC AMP CELLULAR 10MHZ-1.5GHZ
Description
General part information
ZKL-1R5+
RF Amplifier IC Cellular, GSM, ISM 10MHz ~ 1.5GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ZKL-1R5+ |
|---|---|
| Current - Supply | 115 mA |
| Frequency (Max) | 1.5 GHz |
| Frequency (Min) | 10 MHz |
| Gain | 40 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3 dB |
| P1dB | 15 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | GSM, ISM, Cellular |
| Test Frequency | 1.5 GHz |
| Voltage - Supply | 12 VDC |
