1658525-1
ActiveTE Connectivity AMP Connectors

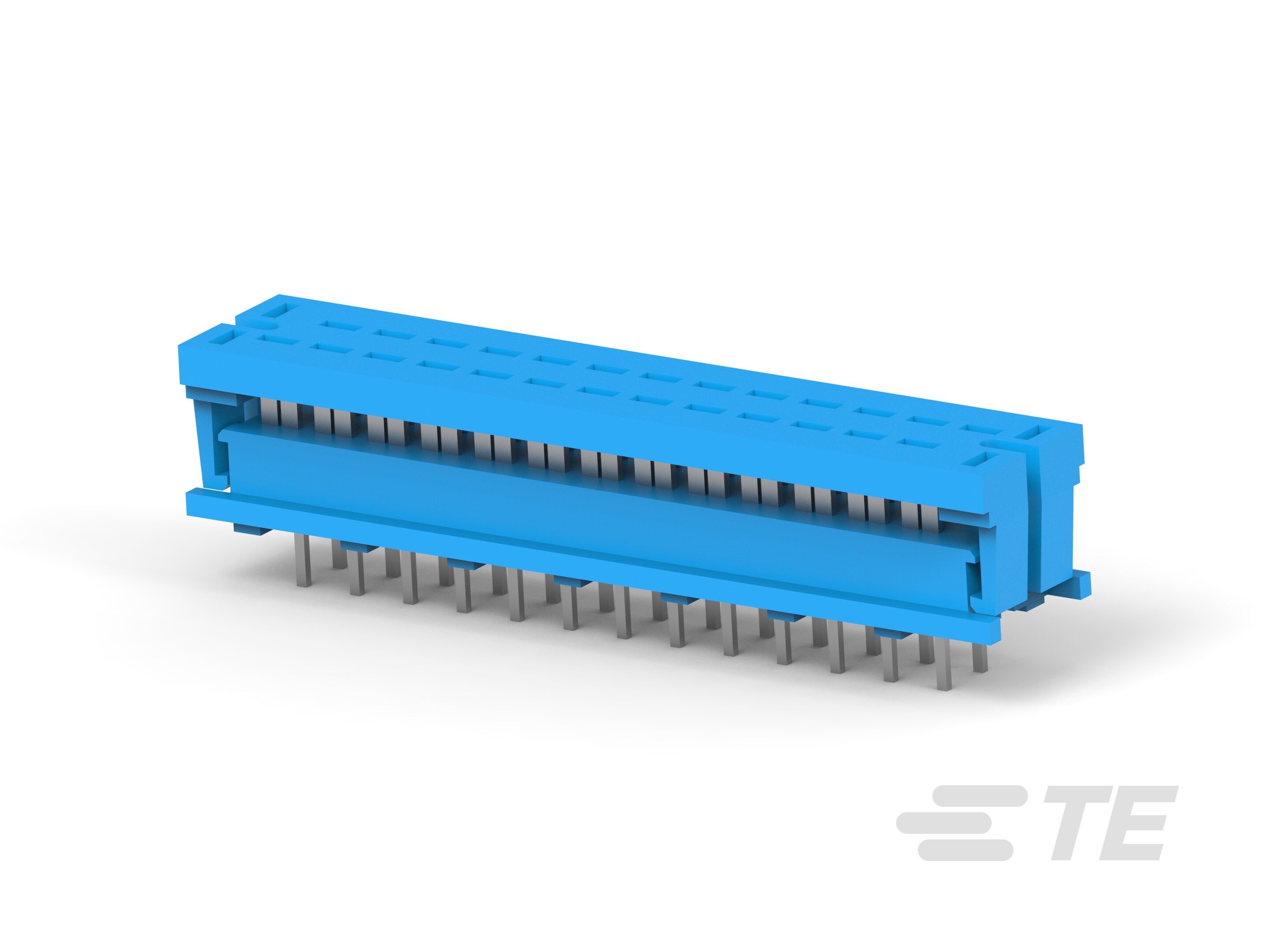

622-2653LF, PCB IDC, LEAD FREE
1658525-1
ActiveTE Connectivity AMP Connectors
622-2653LF, PCB IDC, LEAD FREE
Description
General part information
1658525-1
Wire-to-Board, 26 Position, 2.54 mm [.1 in] Centerline, Vertical, Through Hole - Solder, 2 Row, Plug, Ribbon Cable Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658525-1 |
|---|---|
| Board-Side Pitch | 0.1 in |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Blue |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Tin |
| Contact Finish Thickness | 100 µin |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 0.1 in |
| Wire Gauge | Stranded or Solid |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 26 AWG |
