2007710-1
ActiveTE Connectivity AMP Connectors
CONN RCPT IMPACT 144POS EDGE MNT
2007710-1
ActiveTE Connectivity AMP Connectors
CONN RCPT IMPACT 144POS EDGE MNT
Description
General part information
2007710-1

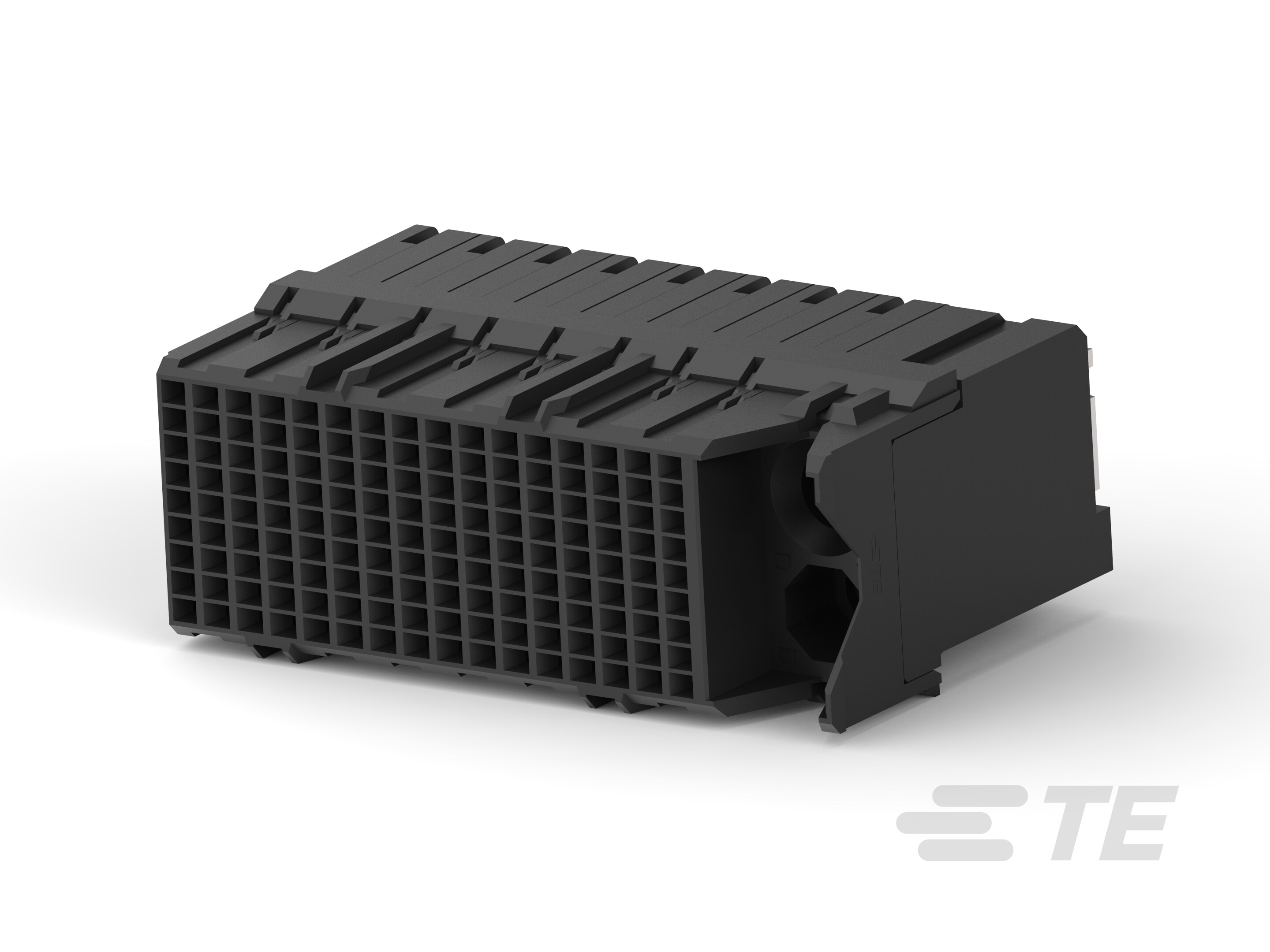

144 Position High Speed Backplane Connector, 9 Row, 16 Column, PCB Mount Receptacle, Right Angle, Unshrouded, 1.9 mm [.075 in] Centerline, IMPACT
Technical Specifications
Parameters and characteristics for this part
| Specification | 2007710-1 |
|---|---|
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | Daughtercard |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Guide |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Columns | 16 |
| Number of Positions | 144 |
| Number of Positions Loaded | All |
| Number of Rows | 9 |
| Pitch | 0.075 in |
| Termination | Press-Fit |
