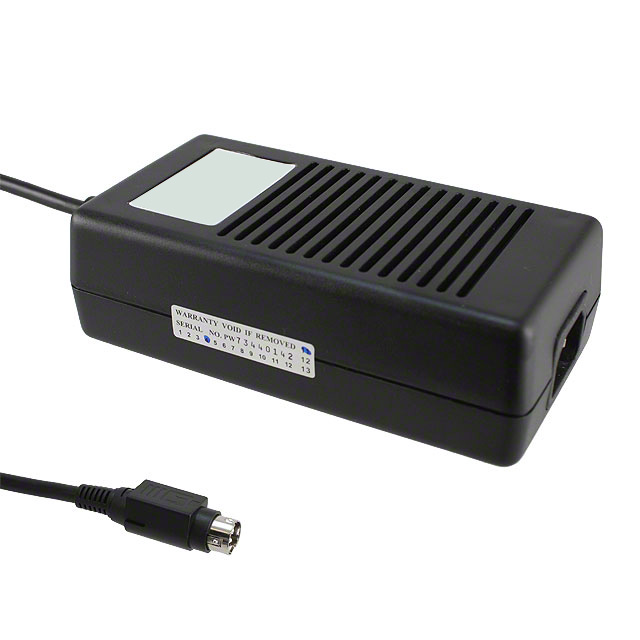

Specification	DTM65PW050C

Applications	Medical
Approval Agency	CE
Cord Length	41.34 in
Current - Output (Max)	8 A
Efficiency	Level V
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	500 mW
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Output Connector	4 Pin, Power DIN
Power (Watts)	40 W
Region Utilized	International
Size / Dimension Height	1.57 in
Size / Dimension Length	5.2 in
Size / Dimension Width	2.71 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	5 VDC
Weight	1 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources

No documents available
