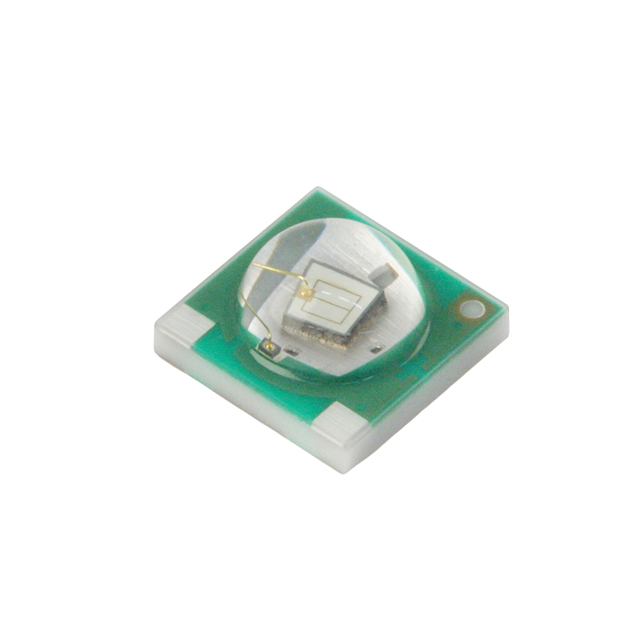

XPCGRN-L1-R250-00802
ActiveCree LED
XLAMP XP-C LIGHT EMITTING DIODE GREEN ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XPCGRN-L1-R250-00802
ActiveCree LED
XLAMP XP-C LIGHT EMITTING DIODE GREEN ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XPCGRN-L1-R250-00802 |
|---|---|
| Color | Green |
| Current - Max [Max] | 500 mA |
| Current - Test | 350 mA |
| Lumens/Watt @ Current - Test | 65 lm/W |
| Luminous Flux @ Current/Temperature | 77 lm |
| Luminous Flux @ Current/Temperature [Max] | 81 lm |
| Luminous Flux @ Current/Temperature [Min] | 74 lm |
| Mounting Type | Surface Mount |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Size / Dimension [x] | 3.45 mm |
| Size / Dimension [x] | 0.136 in |
| Size / Dimension [y] | 0.136 in |
| Size / Dimension [y] | 3.45 mm |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 20 °C/W |
| Viewing Angle | 125 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XPCGRN-L1-R250-00802
LED Lighting Color XLamp® XP-C Green 525nm (520nm ~ 530nm) 1414 (3535 Metric)
