Description
General part information
MDT0700ESH-HDMI

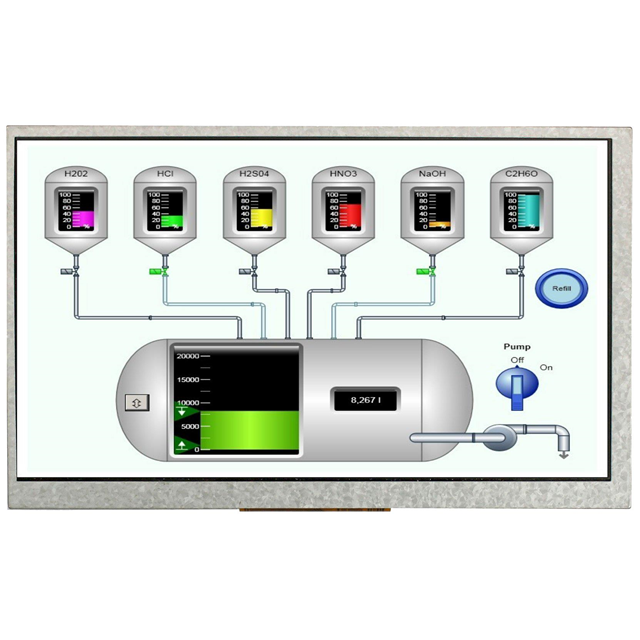

Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color HDMI 7" (177.80mm) 1024 x 600 (WSVGA)
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0700ESH-HDMI |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | TFP401 |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pitch Height | 0.14 mm |
| Dot Pitch Width | 0.15 mm |
| Dot Pixels (Horizontal) | 1024 pixels |
| Dot Pixels (Resolution) | WSVGA |
| Dot Pixels (Vertical) | 600 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | HDMI |
| Touchscreen | Non-Touch |
| Viewing Area Height | 85.92 mm |
| Viewing Area Width | 154.21 mm |
