Description

General part information

CMS38606P-30D43F

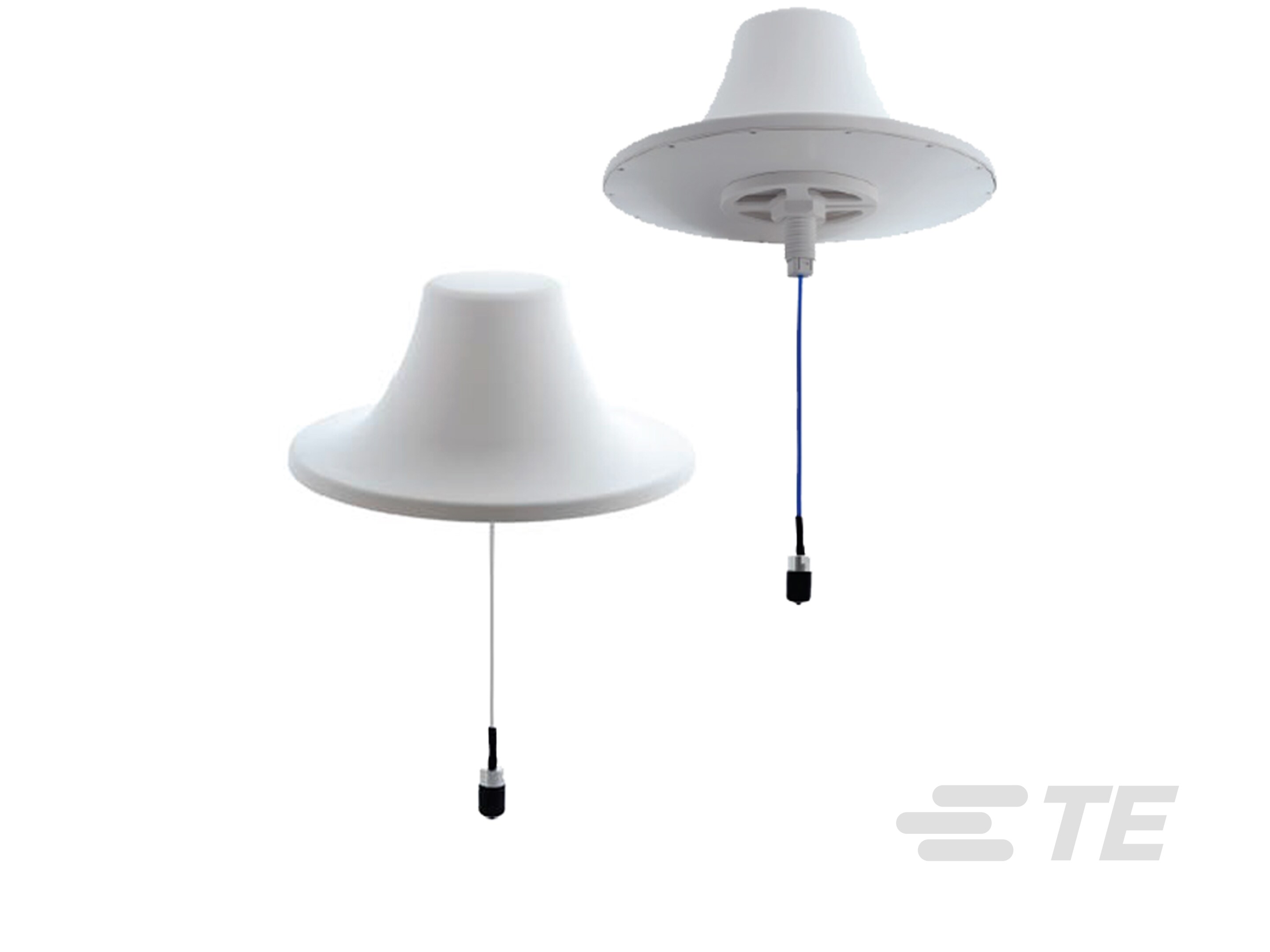

Dome/Puck Antenna, Multi Band, CBRS / Cat-M/NB-IoT / Cellular, External Mount, Wall/Ceiling Mount, 4.3-10, Omnidirectional, Single Port

Technical Specifications

Parameters and characteristics for this part

SpecificationCMS38606P-30D43F
Antenna TypeDome
ApplicationsLTE
Features304.8mm, Cable
Frequency (Center/Band)703MHz, 1.95GHz, 3.25GHz, 450MHz, 883MHz, 1.42GHz, 5.15GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum520 MHz
Frequency Range (Band 1) Minimum380 MHz
Frequency Range (Band 2) Maximum806 MHz
Frequency Range (Band 2) Minimum600 MHz
Frequency Range (Band 3) Maximum960 MHz
Frequency Range (Band 3) Minimum806 MHz
Frequency Range (Band 4) Maximum1.435 GHz
Frequency Range (Band 4) Minimum1.395 GHz
Frequency Range (Band 5) Maximum2.2 GHz
Frequency Range (Band 5) Minimum1.69 GHz
Frequency Range (Band 6) Maximum4.3 GHz
Frequency Range (Band 6) Minimum2.2 GHz
Frequency Range (Band 7) Maximum6 GHz
Frequency Range (Band 7) Minimum4.3 GHz
Gain5.7 dBi, 5.8 dBi, 5.4 dBi, 5.3 dBi, 2.6 dBi, 2.1 dBi, 2.2 dBi
Ingress ProtectionIP67
Mounting TypeCeiling Mount
Number of Bands7
Power - Max50 VA
RF Family/StandardCellular
Termination GenderFemale
Termination Pin Count10 pins
Termination Pitch4.3 mm
VSWR3, 2
VSWR Maximum3
VSWR Minimum2
