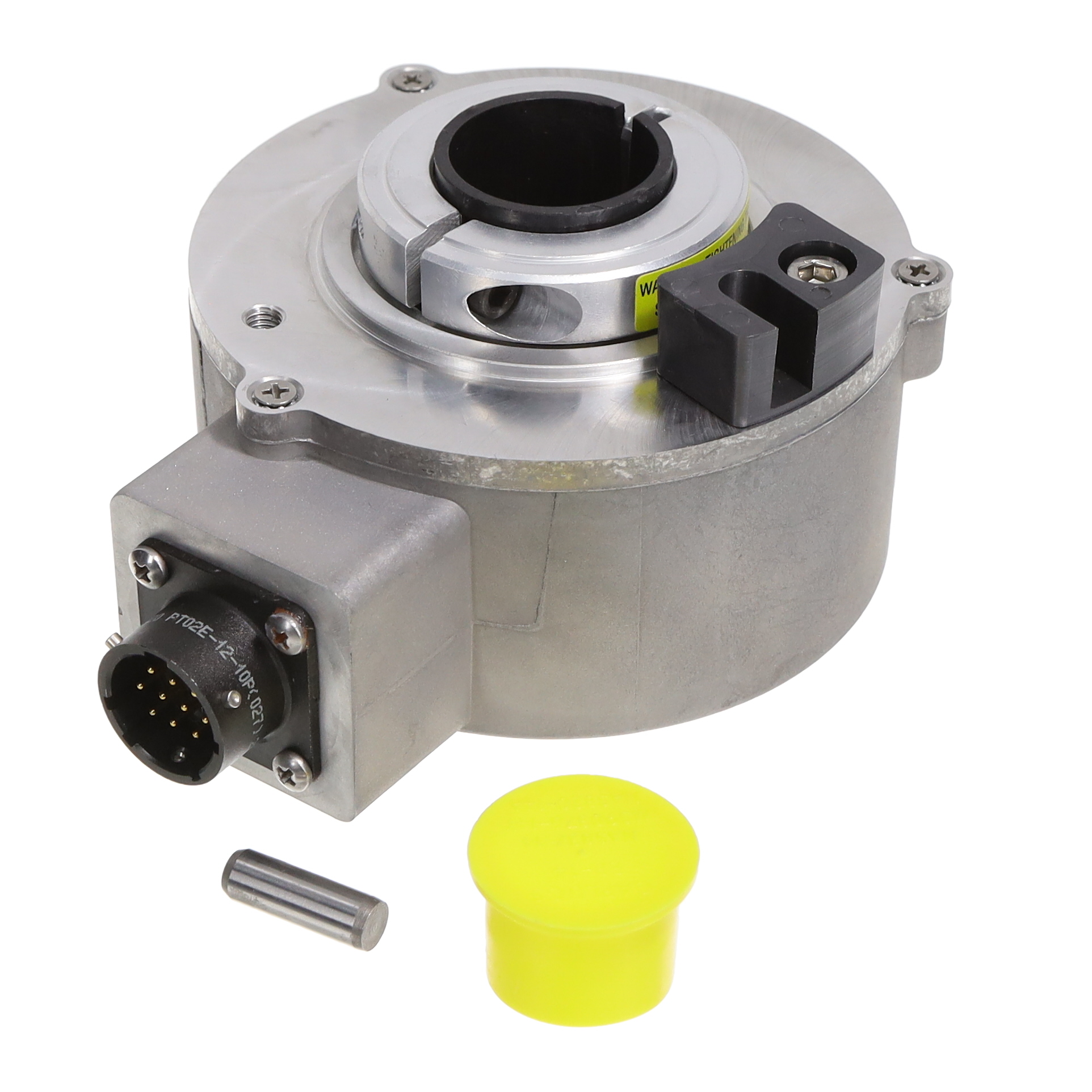

Specification	01070-982

Actuator Type	Hole for Shaft
Built in Switch	No
Detent	No
Encoder Type	Optical
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature Line Driver with Index (Incremental)
Pulses per Revolution	1024
Rotational Life (Cycles Min)	7.5 B
Termination Style	Connector
Voltage - Supply	5 VDC

01070 Series

...

Part	Termination Style	Rotational Life (Cycles Min)	Orientation	Pulses per Revolution	Output Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Encoder Type	Mounting Type	Actuator Type	Built in Switch	Detent
Sensata-BEI Encoders 01070-581	Connector	7.5 B	User Selectable	4096	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-863	Connector	7.5 B	User Selectable	100	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-120	Connector	7.5 B	User Selectable	1024	Quadrature with Index (Incremental)	28 V	5 V	Incremental	Servo Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-509	Connector	7.5 B	User Selectable	100	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-1206	Connector	7.5 B	User Selectable	1024	Quadrature with Index (Incremental)	28 V	5 V	Incremental	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-319	Connector	7.5 B	User Selectable	2048	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-294	Connector	7.5 B	User Selectable	1024	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-273	Connector	7.5 B	User Selectable	360	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-232	Connector	7.5 B	User Selectable	5000	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
Sensata-BEI Encoders 01070-230	Connector	7.5 B	User Selectable	500	Quadrature with Index (Incremental)	28 V	5 V	Optical	Chassis Mount	Hole for Shaft	No	No
