B82141A1333K000
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 300MA 1.12 OHM TH
B82141A1333K000
ActiveEPCOS - TDK Electronics
FIXED IND 33UH 300MA 1.12 OHM TH
Description
General part information
B82141A1333K000

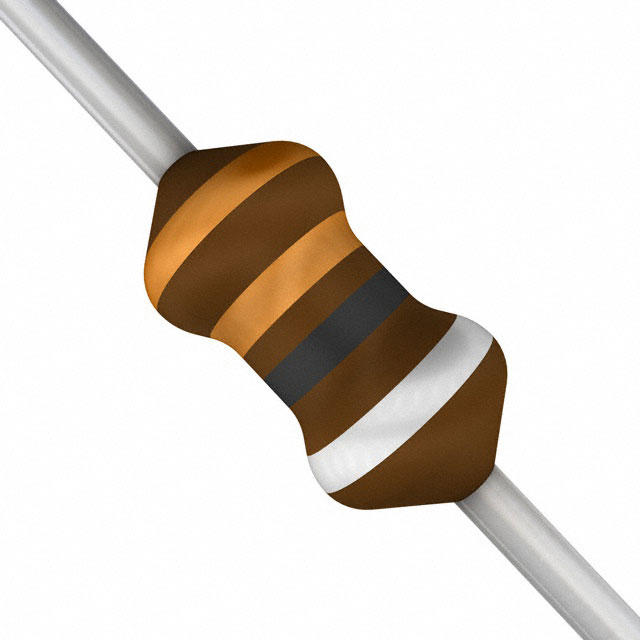

33 µH Unshielded Drum Core, Wirewound Inductor 300 mA 1.12Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82141A1333K000 |
|---|---|
| Current Rating | 0.3 A |
| DC Resistance (DCR) (Max) | 1.12 Ohm |
| Frequency - Self Resonant | 10 MHz |
| Inductance | 33 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.118 in |
| Size / Dimension Length | 0.268 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
