LCCA30599-FT10
ActivePasternack
SMA M TO BNC FBH USING LC085TBJ,
LCCA30599-FT10
ActivePasternack
SMA M TO BNC FBH USING LC085TBJ,
Description
General part information
LCCA30599-FT10

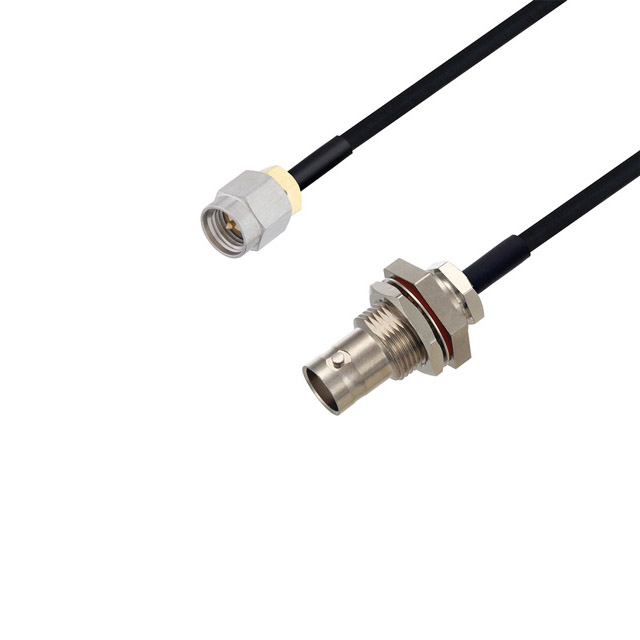

Cable Assembly Coaxial BNC to SMA LC085TBJ 120.0" (3.0m) 10.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30599-FT10 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 120 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
