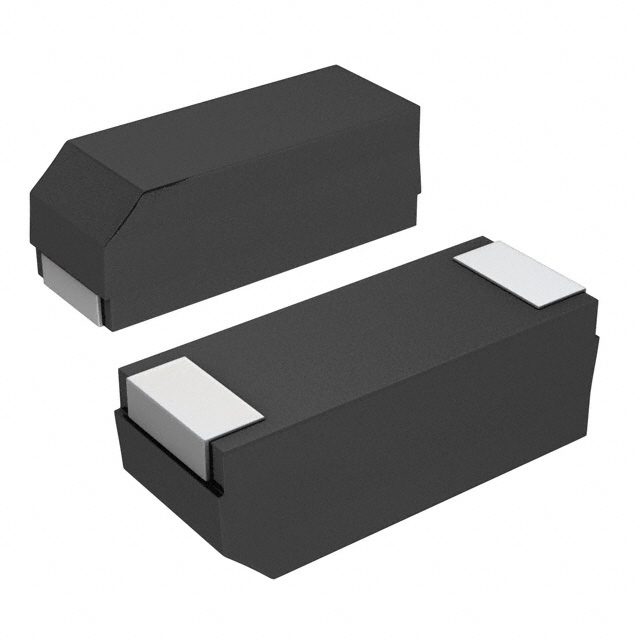

M35C276K060BZSS
ObsoleteVishay Dale
CAP TANT 27UF 10% 60V 0803
M35C276K060BZSS
ObsoleteVishay Dale
CAP TANT 27UF 10% 60V 0803
Description
General part information
M35C276K060BZSS
27 µF Hermetically Sealed Tantalum Capacitors 60 V 0803 (2108 Metric) 5Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | M35C276K060BZSS |
|---|---|
| Capacitance | 27 µF |
| ESR (Equivalent Series Resistance) | 5 Ohm |
| Features | Wet Tantalum |
| Height - Seated (Max) | 0.307 in |
| Manufacturer Size Code | C |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0803 (2108 Metric) |
| Size / Dimension Length | 0.835 in |
| Size / Dimension Width | 0.315 in |
| Tolerance | 10 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
