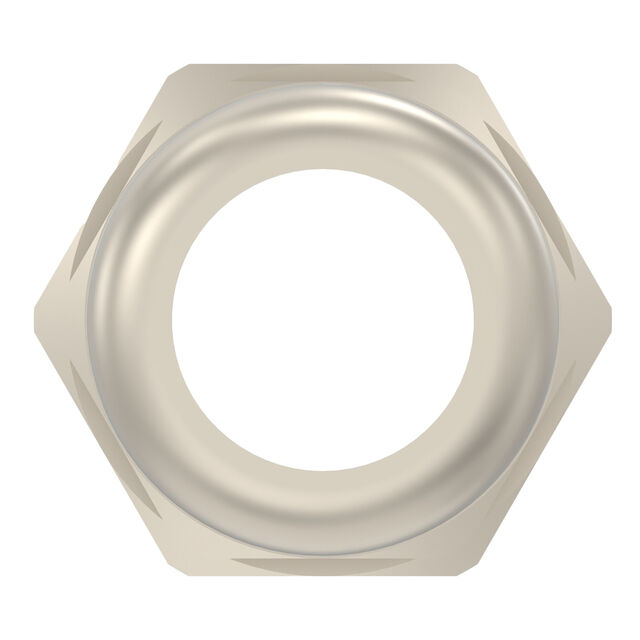

Specification	1SNG613024R0000

Color	Beige
Includes	Seal
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Nickel Plated, Brass
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-20 °C
Outside Cable Diameter (Max)	0.984 in
Outside Cable Diameter (Min)	0.709 in
Thread Length	0.512 in
Thread Size (Diameter)	1 in
Thread Type	NPT
Type	Cable Gland

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
