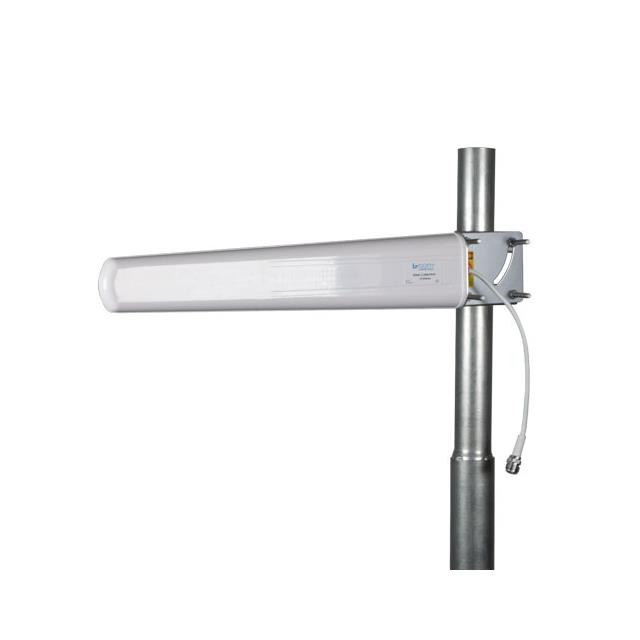

LCANLP1010
ActivePasternack
3400-3600 MHZ, 14 DBI, GAIN, V-P
LCANLP1010
ActivePasternack
3400-3600 MHZ, 14 DBI, GAIN, V-P
Description
General part information
LCANLP1010
3.5GHz 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, CMDA, IoT, LoRa, LPWAN, LTE, LTE-M, M2M, NB-IoT, Wi-Fi Log Periodic RF Antenna 3.4GHz ~ 3.6GHz 14dBi N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | LCANLP1010 |
|---|---|
| Antenna Type | Log Periodic |
| Applications | Wi-Fi, NB-IoT, M2M, LTE, LoRa, CMDA, LTE-M, LPWAN, 802.11a/b/g/n/ac/ad/ah/ax, 5G, IoT, 4G |
| Features | Cable, 230.12mm |
| Frequency (Center/Band) | 3.5 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 3 GHz |
| Frequency Range (Max) | 3.6 GHz |
| Frequency Range (Min) | 3.4 GHz |
| Gain | 14 dBi |
| Height (Max) | 15.8 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, Cellular |
| Termination | N Type Female |
| VSWR | 1.5 |
