HEN.3M.330.XLNP

Active

LEMO

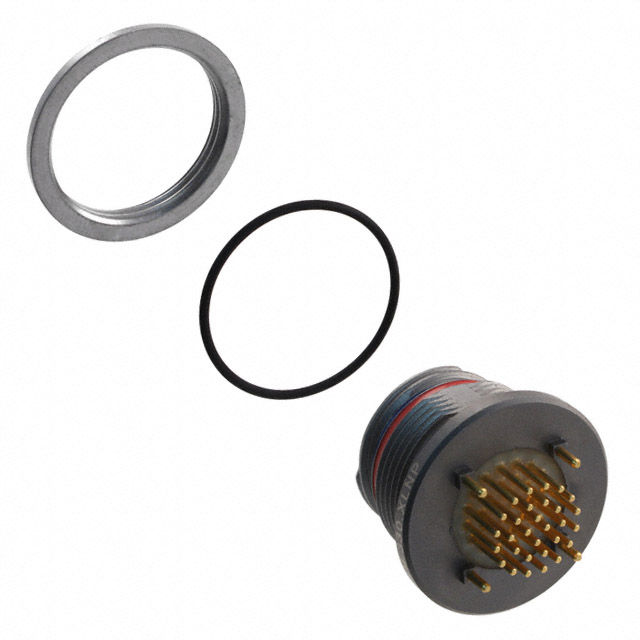

CONN RCPT FMALE 30POS GOLD SLDR

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 30POS GOLD SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEN.3M.330.XLNP	HEN.3M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Color	Gray	Gray, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	3.5 A	3.5 A
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	30	30
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Chrome
Shell Material	Aluminum Alloy	Aluminum Alloy, Brass
Shell Size - Insert	330	330
Shielding	Shielded	Shielded
Termination	Solder	Solder

CONN RCPT FMALE 30POS GOLD SLDR

Part	Shell Material	Applications	Mounting Type	Termination	Contact Material	Orientation	Color	Current Rating (Amps)	Shell Size - Insert	Mounting Feature	Ingress Protection	Shell Finish	Shielding	Primary Material	Insert Material	Connector Type	Features	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]
LEMO HEN.3M.330.XLNP	Aluminum Alloy	Aerospace, Automotive, Aviation, Military	Panel Mount, Through Hole	Solder	Bronze	N	Gray	3.5 A	330	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Nickel	Shielded	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Potted	Gold	30	59 Áin	1.5 Ám	-20 C	80 C
LEMO HEN.3M.330.CLNP	Brass	Aerospace, Automotive, Aviation, Military	Panel Mount, Through Hole	Solder	Bronze	N	Silver	3.5 A	330	Bulkhead - Front Side Nut	IP68 - Dust Tight, Waterproof	Chrome	Shielded	Metal	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	Potted	Gold	30	59 Áin	1.5 Ám	-20 C	80 C
