Description

General part information

1-2199298-8

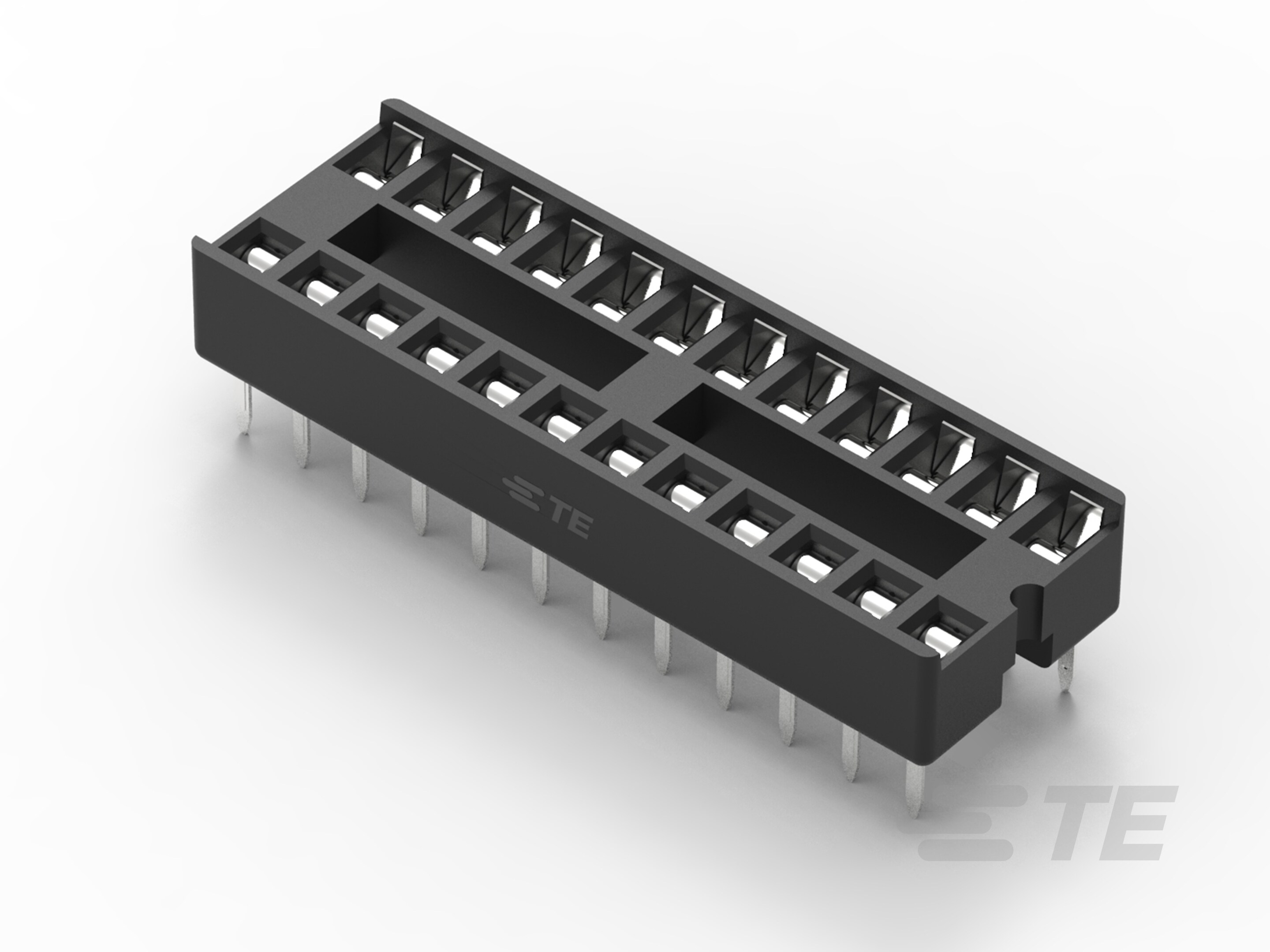

Stamped & Formed, 24 Position, Low Profile, Through Hole, Tin (Sn), -40 – 105 °C [-40 – 221 °F], DIP Sockets

Technical Specifications

Parameters and characteristics for this part

Specification1-2199298-8
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating60 µin
Contact Material - MatingPhosphor Bronze
Contact Material - PostCopper, Brass
FeaturesOpen Frame
Grid Columns12
Grid Rows2
Housing MaterialGlass Filled, Polybutylene Terephthalate, PBT
Mounting TypeThrough Hole
Number of Positions or Pins (Grid)24
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.1 in
Pitch - Post0.1 in
Row Spacing0.3 in
TerminationSolder
TypeDIP, 0.3" (7.62mm) Row Spacing
