1-2112891-5
ActiveTE Connectivity AMP Connectors
36POS,TAB 1.5X0.6,TAB HSG,ASSY
1-2112891-5
ActiveTE Connectivity AMP Connectors
36POS,TAB 1.5X0.6,TAB HSG,ASSY
Description
General part information
1-2112891-5

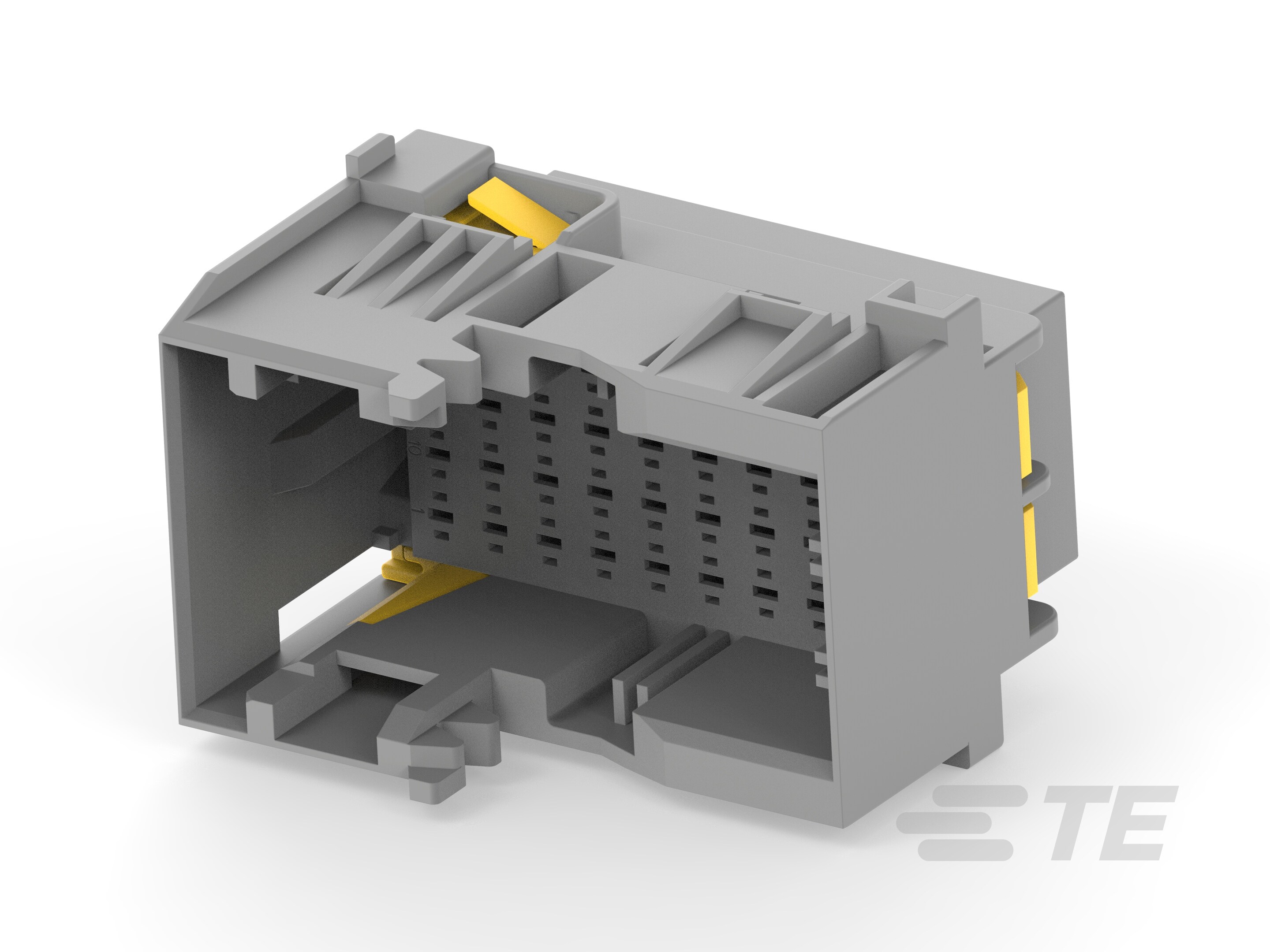

36 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4 mm [.157 in] Centerline, Gray, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2112891-5 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 36 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.157 in |
| Row Spacing | 0.165 in |
