SWC5547AK120-500

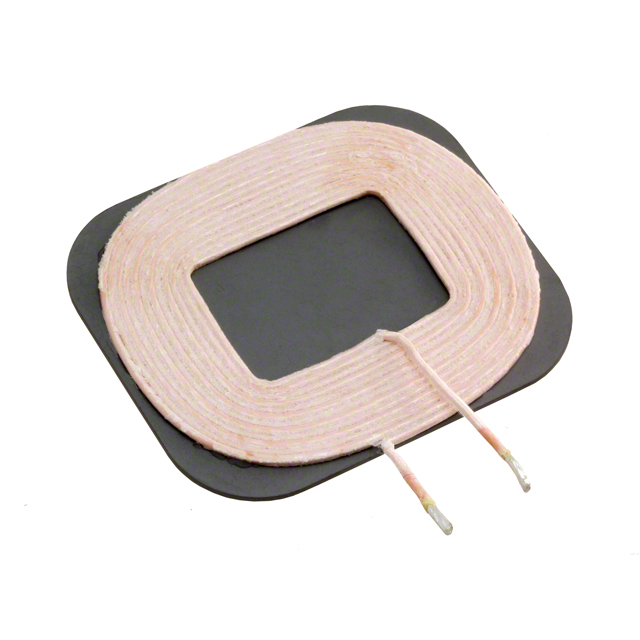

1 Coil, 1 Layer 12.5µH Wireless Charging Coil Transmitter 65mOhm Max
Technical Specifications
Parameters and characteristics for this part
| Specification | SWC5547AK120-500 |
|---|---|
| DC Resistance (DCR) (Max) | 65 mOhm |
| Function | Transmitter |
| Inductance | 12.5 µH |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Q | 90 |
| Size / Dimension Height | 0.118 in |
| Size / Dimension Length | 2.173 in |
| Size / Dimension Width | 1.858 in |
| Tolerance | 10 % |
| Type | 1 Layer, 1 Coil |
