AS1351

Active

ams-OSRAM USA INC.

IC REG LINEAR POS PROG 12-QFN

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

IC REG LINEAR POS PROG 12-QFN

Technical Specifications

Parameters and characteristics for this part

Specification	AS1351

Control Features	Enable
Current - Output	200 mA
Current - Quiescent (Iq)	200 µA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Programmable

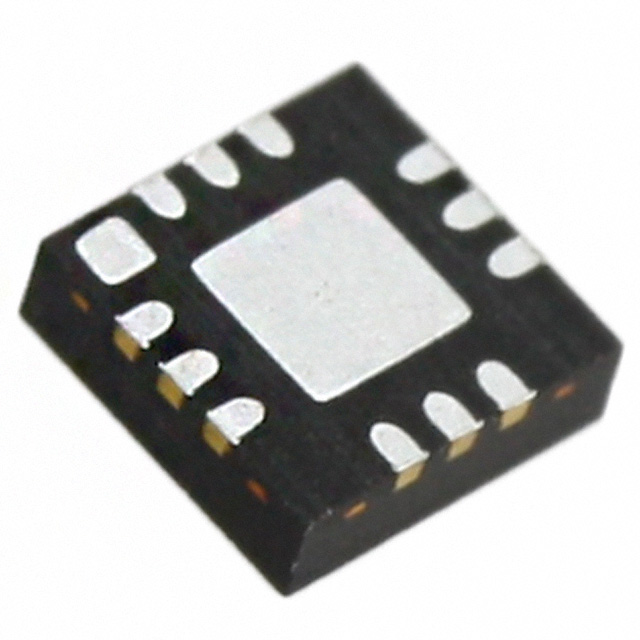

Package / Case	12-VFQFN Exposed Pad
Protection Features	Soft Start, Over Temperature, Over Current
PSRR [Max]	70 dB
PSRR [Min]	40 dB
Supplier Device Package	12-QFN (3x3)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Max) [Max]	3.3 V
Voltage - Output (Min/Fixed)	1.8 V

IC REG LINEAR POS PROG 12-QFN

Part	Control Features	PSRR [Max]	PSRR [Min]	Voltage - Input (Max) [Max]	Number of Regulators	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Current - Output	Mounting Type	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Output (Max) [Max]	Output Type	Output Configuration	Package / Case
ams-OSRAM USA INC. AS1351	Enable	70 dB	40 dB	5.5 V	2	1.8 V	200 µA	200 mA	Surface Mount	Over Current, Over Temperature, Soft Start	85 °C	-40 °C	12-QFN (3x3)	3.3 V	Programmable	Positive	12-VFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Programmable 2 Output 200mA, 200mA 12-QFN (3x3)
