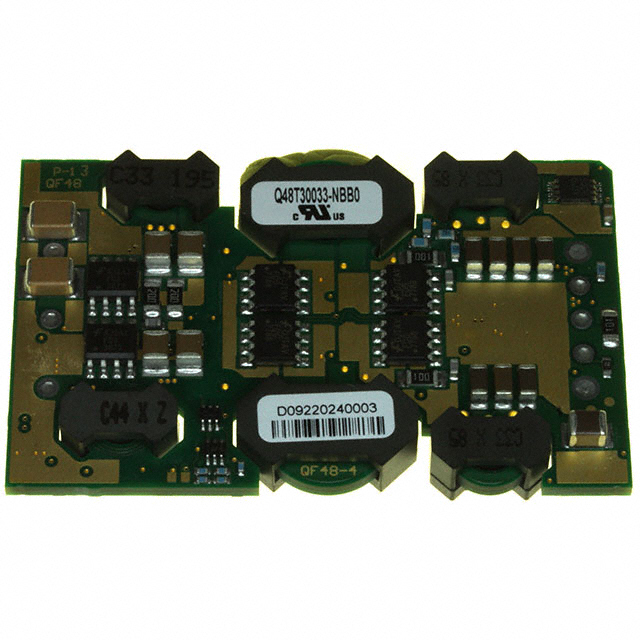

Q48T30033-NBB0

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 99W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 99W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 3.3V 99W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Power (Watts)	Number of Outputs	Applications	Package / Case	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Voltage - Input (Min) [Min]	Control Features	Features
Bel Power Solutions Q48T30033-NBB0	0.34 in	36.8 mm	8.6 mm	2.3 in	58.4 mm	1.45 in	75 V	99 W	1	ITE (Commercial)	1/4 Brick, 8-DIP Module	Through Hole	Isolated Module	30 A	2000 V	85 °C	-40 °C	89 %	3.3 V	36 V
Bel Power Solutions Q48T30033-PDB0	0.34 in	36.8 mm	8.6 mm	2.3 in	58.4 mm	1.45 in	75 V	99 W	1	ITE (Commercial)	1/4 Brick, 8-DIP Module	Through Hole	Isolated Module	30 A	2000 V	85 °C	-40 °C	88 %	3.3 V	36 V	Active High, Enable	OCP, OTP, OVP, Remote On/Off, UVLO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 30A 36V - 75V Input

Technical documentation and resources
