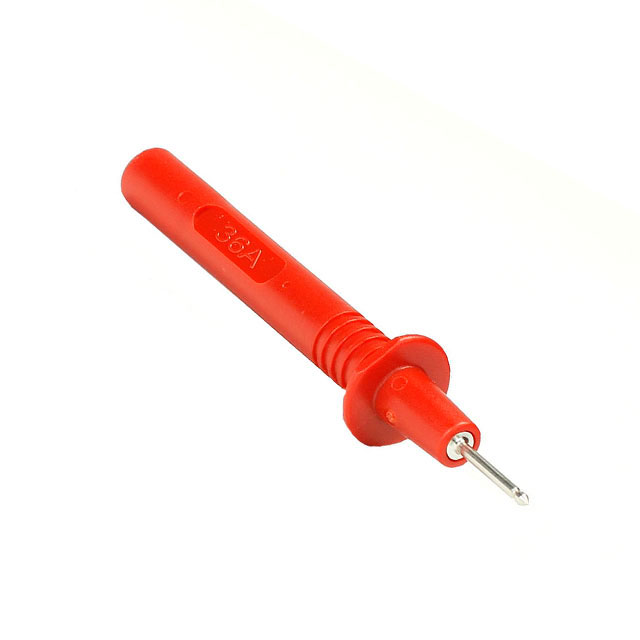

CT2266-2
ActiveCal Test Electronics
PROBE BODY 2MM TIP RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2266-2 |
|---|---|
| Color | Red |
| Connection Type | Female Socket (Jack), Banana |
| Current Rating (Amps) | 36 A |
| Includes | IC Insulator Cap |
| Length - Tip | 0.748 in |
| Length - Tip | 19 mm |
| Material - Body | Nylon |
| Material - Tip | Brass, Nickel Plated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Quantity | 1 Box |
| Ratings | 1000 V |
| Ratings | CAT II |
| Tip Type | Notched Tip |
| Tip Type [diameter] | 0.08 in |
| Tip Type [diameter] | 2.03 mm |
| Voltage Rating | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.30 | |
Description
General part information
CT2266-2
36 A Notched Tip, 0.080" (2.03mm) Dia Red
