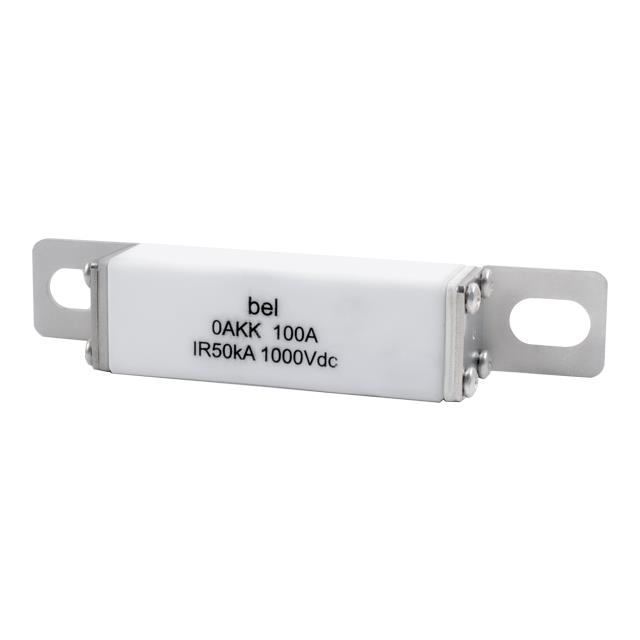

0AKK-K100-BB
ActiveBel Fuse Inc.
FUSE 100A 1000V STUD MNT
0AKK-K100-BB
ActiveBel Fuse Inc.
FUSE 100A 1000V STUD MNT
Description
General part information
0AKK-K100-BB
100A 1 kVDC Fuse Rectangular Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0AKK-K100-BB |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 50 kA |
| Current Rating | 100 A |
| Fuse Type | Rectangular |
| Melting I²t | 1560 |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Rectangular, Blade |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.984 in |
| Size / Dimension Length | 2.913 in |
| Size / Dimension Width | 0.866 in |
| Voltage Rating - DC | 1 kV |
