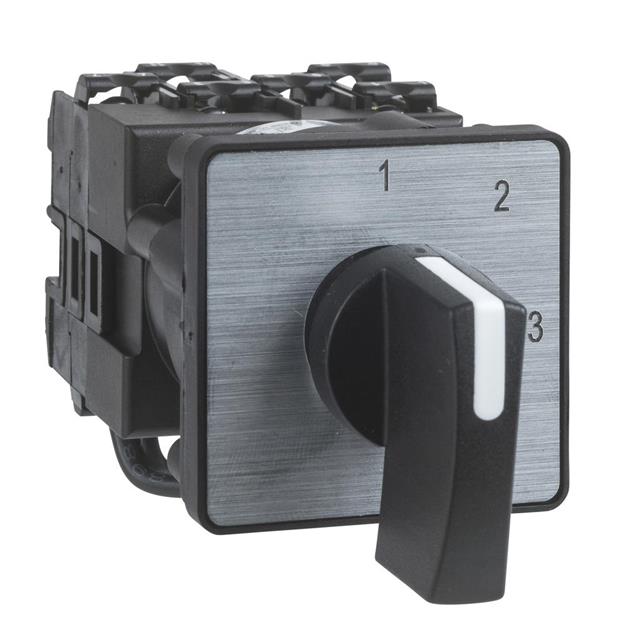

K1B006TLH
ActiveSCHNEIDER ELECTRIC
SWITCH SELECT 2POS SPST 3A 230V
K1B006TLH
ActiveSCHNEIDER ELECTRIC
SWITCH SELECT 2POS SPST 3A 230V
Description
General part information
K1B006TLH
Selector Switch 2 Position SPST 3A (AC) 230 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | K1B006TLH |
|---|---|
| Approval Agency | UL, CSA |
| Circuit | SPST |
| Current Rating | 3 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 230 V |
